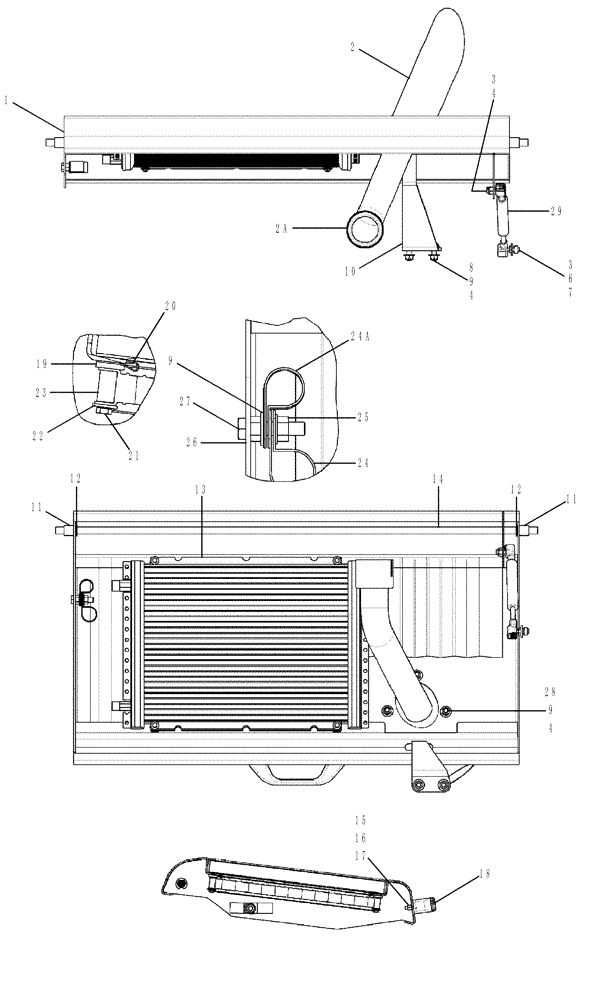

Запчасти Case IH 430 (09-21[02]) - HOOD - AIR CONDITIONING (ASN 415564) (09) - CHASSIS

1

84207144

HOOD

Rear Hood, Air Conditioning

1шт.

2

84207184

EXHAUST SYSTEM PIPE

Exhaust Extension

1шт.

2

84207148

EXHAUST SYSTEM PIPE

Tube, Exhaust Tailpipe

1шт.

3

189609A1

BALL STUD,M8 x 1.25

Ball Stud

2шт.

4

9628098

NUT,M8 x 1.25, Cl 10

6шт.

6

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

11

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

2шт.

12

9635806

CIRCLIP,Ext., 0.392" Dia

2шт.

13

87563692

CONDENSER

Air Conditioning Condensor

1шт.

14

87459075

ROD

1шт.

15

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

16

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

17

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

18

406256A1

HANDLE

1шт.

19

86592710

WASHER,6.4mm ID x 17mm OD x 3mm Thk

4шт.

20

87301324

NUT,Spring, M5 x 0.8

4шт.

21

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

4шт.

22

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

4шт.

23

87574372

SPACER,6.8mm ID x 10.3mm OD x 19mm L

4шт.

24

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1-2шт.

24a

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1шт.

25

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

26

9706690

NUT,M8 x 1.25, Cl 8

1шт.

27

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

29

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Spring Hood Assist

1шт.
