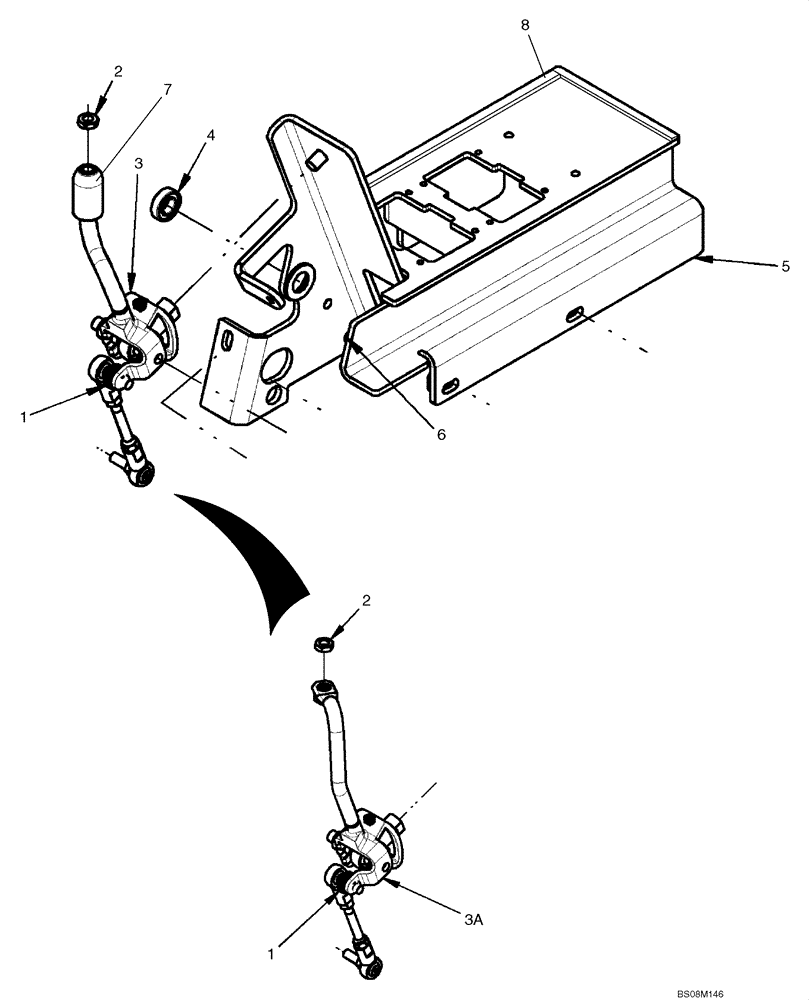

Запчасти Case IH 430 (09-17) - LOADER & GROUND DRIVE CONTROL - LH (09) - CHASSIS

1

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

3шт.

2

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

3

87662349

LEVER

Control Lever, LH; If Used

1шт.

3a

87498731

CONTROL LEVER

Control Lever, LH; If Used

1шт.

4

87458664

BALL BEARING,15 mm ID x 32 mm OD x 9 mm

2шт.

5

87726166

FRAME

Frame, Control LH

1шт.

6

87030561

NUT,M6 x 1, Cl 8

If Used

1шт.

7

87662429

ADAPTER

If Used

1шт.

8

291308

SEALING STRIP,0.75" W x 0.5" Thick

20 Feet Per Package, Cut As Required

1шт.
