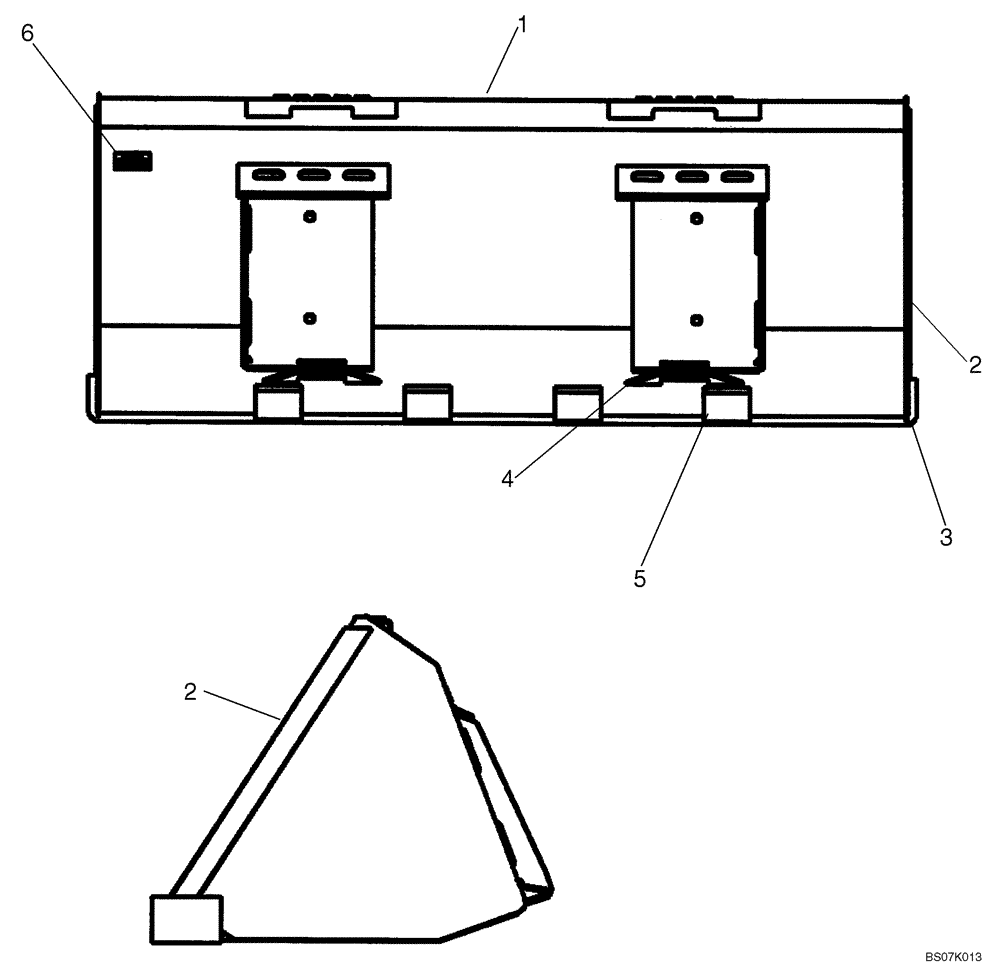

Запчасти Case IH 430 (09-08) - BUCKETS - LOADER (UTILITY/LIGHT MATERIAL) (09) - CHASSIS

REF

INSTRUCTION

UTILITY/LIGHT MATERIAL

1шт.

1

87010188

BUCKET, 1829 mm (72 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

86501801

CUTTING EDGE

2шт.

3

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

72 in

1шт.

4

9822175

PLATE

2шт.

5

86501815

BAR

Skid Bar

4шт.

6

NSS

NOT SOLD SEPARAT

Decal

1шт.

1

87010189

BUCKET, 2134 mm (84 Inch); Order From Machinery Price List; Incl 2 - 6

1шт.

2

86501801

CUTTING EDGE

2шт.

3

86900574

CUTTING EDGE

84 in

1шт.

4

9822175

PLATE

2шт.

5

86501815

BAR

Skid Bar

5шт.

6

NSS

NOT SOLD SEPARAT

Decal

1шт.
