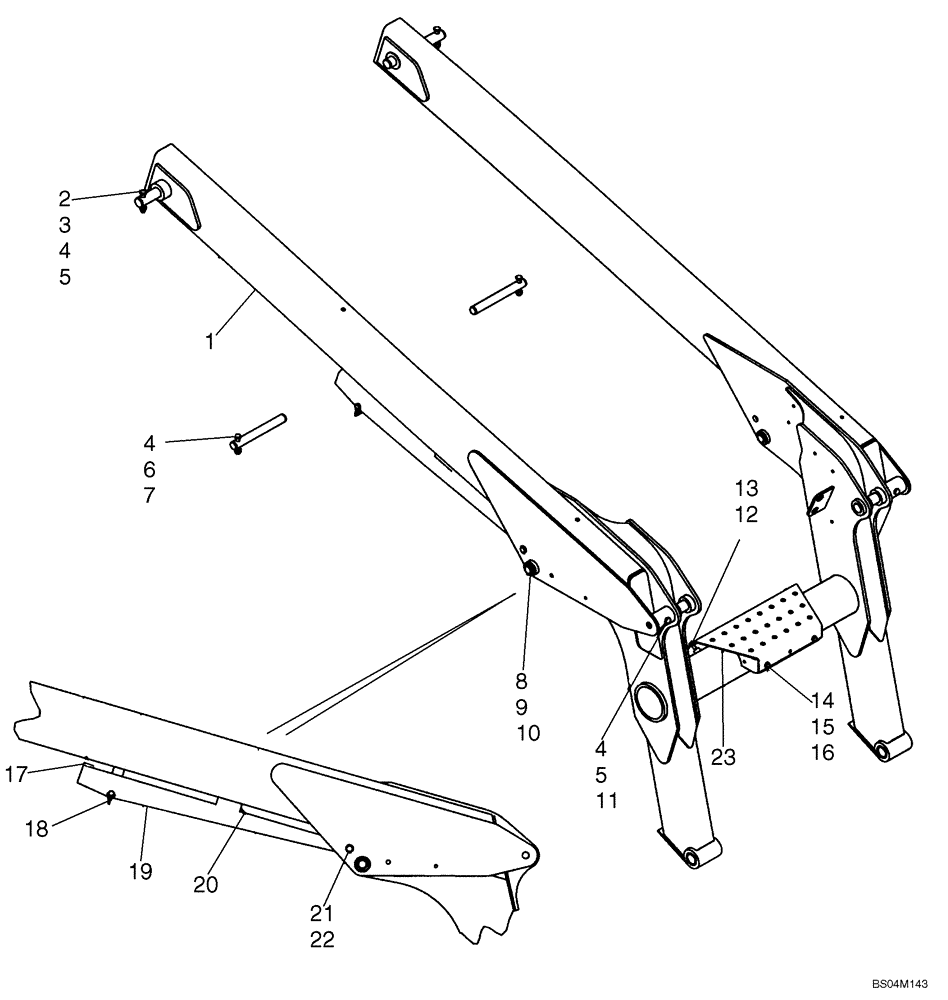

Запчасти Case IH 430 (09-01) - LOADER LIFT (09) - CHASSIS

87448095

FRAME ASSY

Loader Arm Kit; Order From Machinery Price List; Incl. Ref 1 Loader Frame, Plus The Following Decals, 321-7029, 398796A1, 398798A1, (2) 412276A1; See Decal Pages For Illustration

1шт.

1

87417491

ARM

Loader; Incl. (4) D33827 Bushings; Used In Production

1шт.

2

382837A1

PIN,31.75mm OD x 234.6mm L

Lift Arm

2шт.

3

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

4

86512554

NUT,M10 x 1.5, Cl 10

6шт.

5

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

4шт.

6

382838A1

PIN,25.4mm OD x 215mm L

Lift Cylinder

2-1шт.

7

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

8

87602935

WASHER,1.06" ID x 1.62" OD x 0.07" Thk

WASHER, 1.0625 x 1.625 x 0.065

10шт.

9

405853A1

PIN

2шт.

10

87019495

SNAP RING,#98, Ext

4шт.

11

393742A1

PIN

Cylinder

2шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

15

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

No Longer Used, Order 43127

2шт.

16

14048221

NUT,M8 x 1.25, Cl 10

2шт.

17

87599604

GROMMET

1шт.

18

87711364

PIN,9.53mm OD

Replaces 407108A1

1шт.

19

87459056

STRUT

Loader Support; No Longer Used, Order 87711366

1шт.

19

87711366

STRUT

Loader Support

1шт.

20

406623A2

PAD

Loader Strut; Laminated

1шт.

20

87599718

FOAM INSULATION

Loader Strut; One Piece

1шт.

21

405854A1

PIN

Cylinder

1шт.

22

87599605

RING

2шт.

23

409422A1

STEP

1шт.

24

87458990

PIN,25.4mm OD x 235mm L

Pin, Lift Cylinder, LH

1шт.
