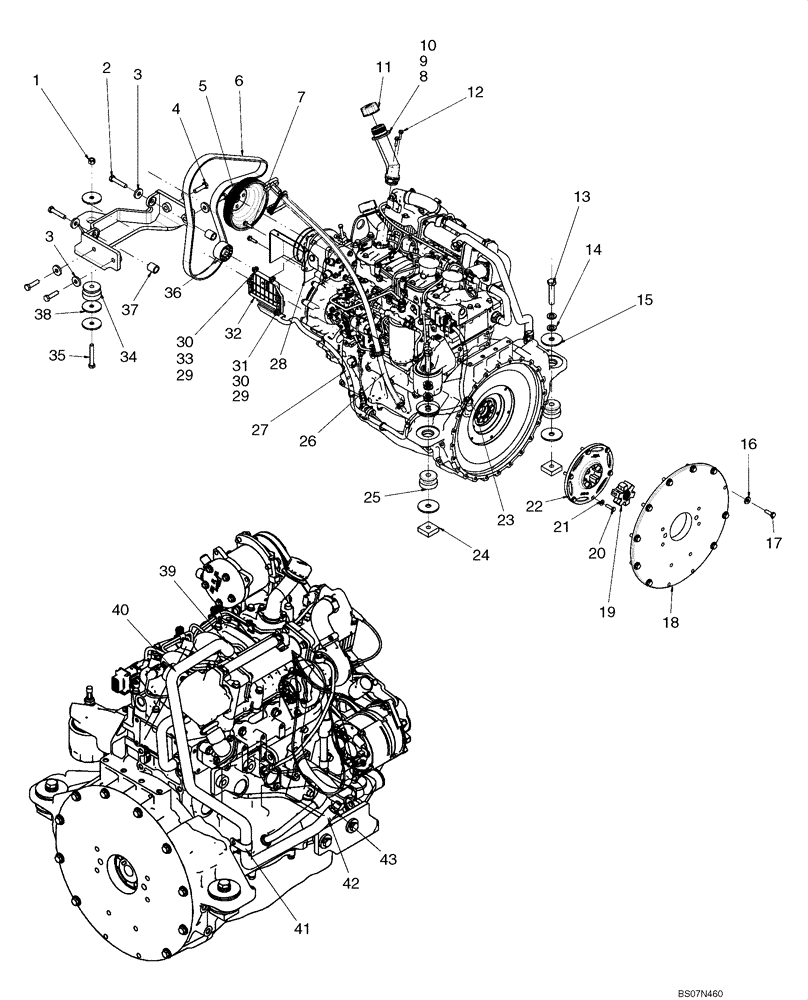

Запчасти Case IH 430 (02-07) - ENGINE - MOUNTING (EUROPE) (02) - ENGINE

1

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

2

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

3

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

4

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

5

87693079

PULLEY,180mm OD x 64mm W

F5C Fan Pulley

1шт.

6

87713097

V-BELT,28.48 mm W x 1504.00 mm L, 8 Ribs

Europe

1шт.

7

87717911

BOLT,Hex, M8 x 20mm, Cl 10.9, Full Thd

2шт.

8

87689627

SPACER

Oil Fill Spacer

1шт.

9

87674803

NECK FILLER

If Used

1шт.

9

87680042

NECK FILLER

Incl 8 And 10

1шт.

10

86625096

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

11

87674802

CAP,7mm ID x 9mm OD x 12mm L

Oil Fill Cap

1шт.

12

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

13

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

14

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

15

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

4шт.

16

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.

17

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

18

87547003

PLATE

Pump Mounting Plate

1шт.

19

87711337

COUPLING,19T, 1-1/8" ID

Coupling, Drive Star, 6 Point Drive

1шт.

20

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

22

87692685

FLEXIBLE COUPLING,215.9mm OD

Flexible Coupling, 6 Point Drive

1шт.

23

87530652

ENGINE

Engine, F5C

1шт.

23

87530652ER

REMAN-REPLACEMENT EN

Engine, F5C

1шт.

23

87530652EPAC

Return Number

CORE-EPA ENGINE

1шт.

23

87530652R

REMAN-REPLACEMENT EN

Engine, F5C

1шт.

23

87530652C

CORE-ENGINE

Return Number

1шт.

23

47456817R

REMAN-BASIC ENGINE

1шт.

23

47456817C

Return Number

CORE-BASIC ENGINE

1шт.

23

87530652C

CORE-ENGINE

Return number - For N.A. only

1шт.

24

87535743

NUT

2шт.

25

86550698

INSULATOR

2шт.

26

REF

INSTRUCTION

Remote Dipstick; See Fig 02-08

1шт.

27

87668734

HARNESS

Harness, EGR ECU

1шт.

28

87714642

COVER

ECU Cover; If Used

1шт.

29

87404992

SQUARE NUT,M6 x 1.0, Cl 8

3-5шт.

30

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3-5шт.

31

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

If Used

3шт.

31

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

32

87685982

ECU

Controller, F5C EGR; If Used

1шт.

32

87477368

ECU

Controller, F5C EGR: If Used

1шт.

33

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

If Used

2шт.

34

86541277

INSULATOR

1шт.

35

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

36

87698715

PULLEY,60mm OD

Idler Pulley

1шт.

37

87578141

SPACER

2шт.

38

87639792

WASHER,0.53" ID x 2.5" OD x 0.19" Thk

3шт.

39

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

40

87655496

HEATER HOSE,16.00 mm ID, 19.00 mm OD, 510.30 mm, SAE 30R2

1шт.

41

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

42

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

1шт.

43

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

44

87687525

BRACKET

Engine Mount Bracket, Fan Side

1шт.
