Запчасти Case IH 430 (08-11) - HYDRAULICS - COUPLER SYSTEM (ITALIAN) (08) - HYDRAULICS

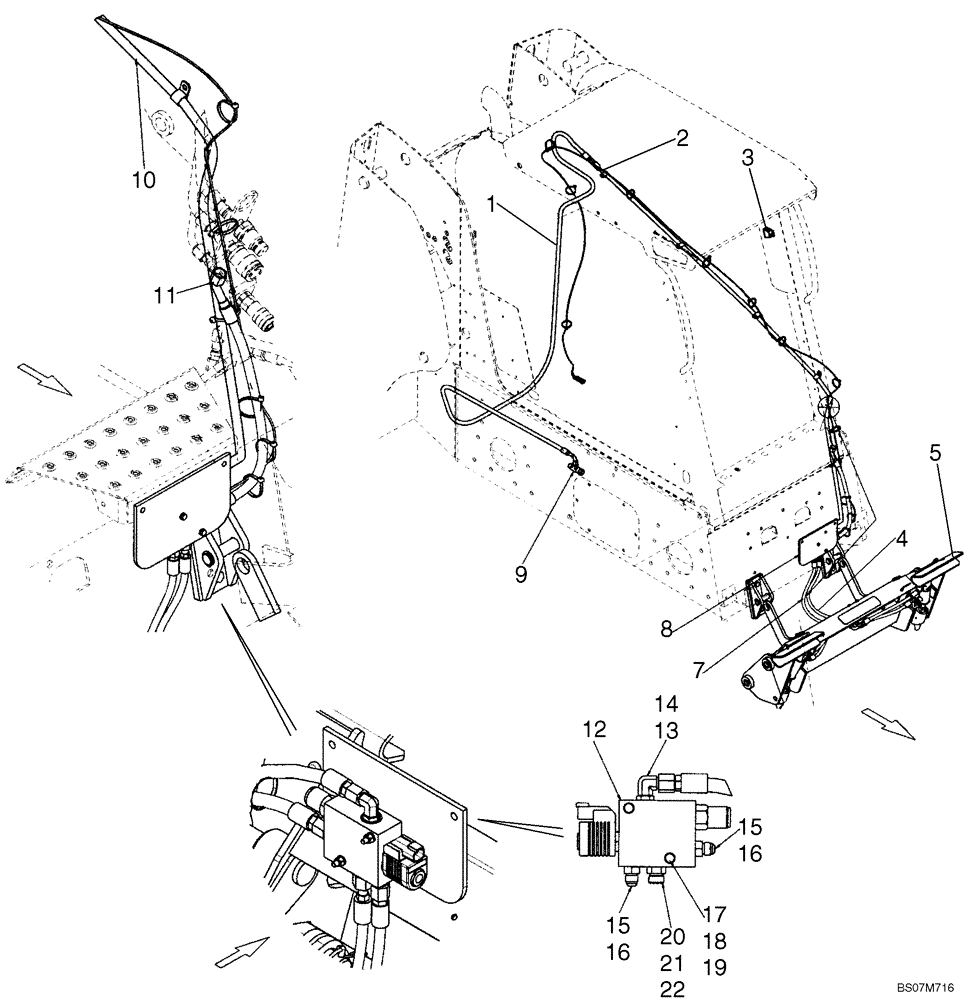

Схема запчастей Case IH 430 - (08-11) - HYDRAULICS - COUPLER SYSTEM (ITALIAN) (08) - HYDRAULICS
2
14
8
19
11
4
22
16
15
20
13
17
15
5
9
10
16
12
7
18
3
21
1

Артикул

Название

Примечание

Количество

1

87367444

HOSE,9.53mm ID x 3305mm L

Hose, Hydraulic Coupler, 3305mm (130 1/8 in.)

1шт.

2

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

3

87642911

SWITCH

Rocker Switch, Hydraulic Coupler

1шт.

4

87440565

HOSE ASSY.,6.35mm ID x 720mm L

Hose, Step To Coupler, 720mm (28 11/32 in.)

1шт.

5

REF

INSTRUCTION

Coupler; See Fig 08-12

1шт.

6

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

7

87440564

HOSE ASSY.,6.35mm ID x 690mm L

Hose, Step To Coupler, 690mm (27 3/16 in.)

1шт.

8

87423807

PLATE

1шт.

9

87446825

TEE

1шт.

10

87367445

HOSE,9.53mm ID x 2482mm L

Hose, Hydraulic Coupler, 2482mm (97 11/16 in.)

1шт.

11

87413436

HOSE ASSY.

Hose, Case Drain, 655mm (25 13/16 in.)

1шт.

12

87421480

HYDRAULIC VALVE

1шт.

13

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 14

2шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

15

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 16

2шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

17

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

18

86512440

NUT,M6, Cl 10

4шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

20

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 21, 22

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 22
