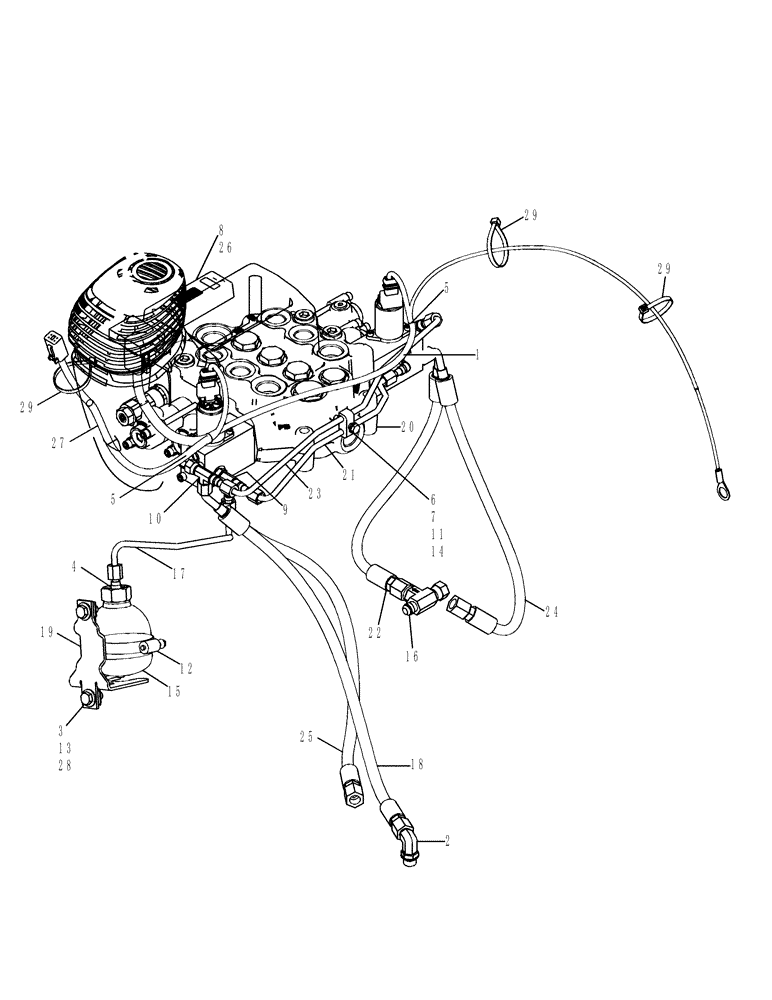

Запчасти Case IH 430 (08-07[2]) - EH PROPORTIONAL AUX PILOT CONTROL (08) - HYDRAULICS

84300900

EH Proportional Aux Pilot Control

SERVICE KIT

1шт.

1

16989

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

4

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

1шт.

5

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

2шт.

6

608089

CLAMP

1шт.

7

80120101

BOLT

1шт.

8

84131374

MODULE

; PWM Driver

1шт.

9

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

1шт.

10

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

12

70922199

HOSE CLAMP,324mm - 359mm

1шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

14

87030561

NUT,M6 x 1, Cl 8

1шт.

15

87376969

ACCUMULATOR

; Hydraulic Pilot Controls

1шт.

16

87438766

TEE

1шт.

17

87447764

HYD TUBE,6.35 mm OD

1шт.

18

87460042

HOSE,6.35mm ID x 560mm L

1шт.

19

87473790

BRACKET

; Accumulator

1шт.

20

87546975

HYDRAULIC VALVE

; EH Pilot

1шт.

21

87563970

HYD TUBE,6.35 mm OD

; Pilot Pressure

1шт.

22

87563974

HOSE

Assy.; E-H Supply

1шт.

23

87564001

HYD TUBE,6.35 mm OD

Assy.; E-H Drain

1шт.

24

87653901

HOSE

Assy.;, Serial Range: Charge-EH

1шт.

25

87654423

HOSE

Assy.; Case Drain

1шт.

26

87729517

SEALING STRIP

Foam, Aux & Throttle

1шт.

27

87749672

HARNESS

Electro-Hydraulic Auxilary

1шт.

28

833-40008

SPRING NUT,M8, U

2шт.

29

84011664

COLLAR

Cable Tie Strap

3шт.

30

84299274

Install, EH Aux Pilot

INSTRUCTION

1шт.
