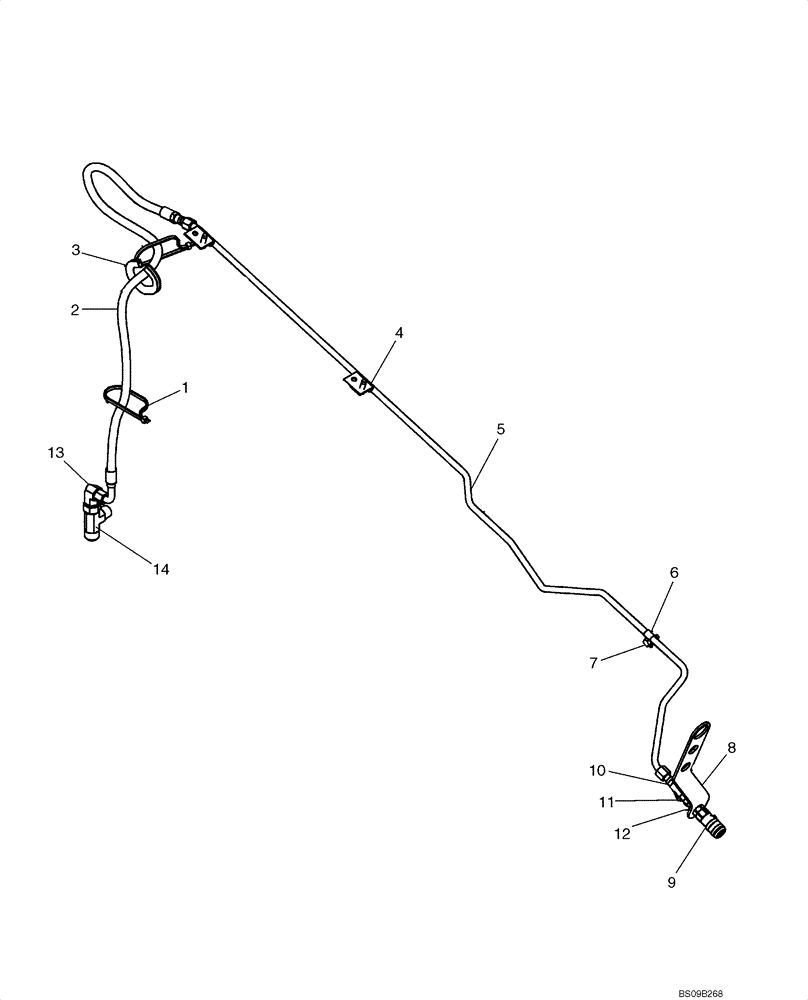

Запчасти Case IH 430 (08-03B) - HYDRAULICS - CASE DRAIN; HIGH FLOW (08) - HYDRAULICS

84150647

SERVICE KIT

Kit, Service Case Drain High Flow; Incl 1 - 7

1шт.

REF

INSTRUCTION

Loader Arm Case Drain; Incl 1 - 14

1шт.

1

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

2

84145939

HOSE,9.53mm ID x 1275mm L

Loader Arm Case Drain

1шт.

3

291186

PROTECTION STRIP,9.9mm W

Channel Edge; 0.5Ft Required

1шт.

4

87447813

BRACKET

2шт.

5

84141255

TUBE

Hose, Hyd Case Drain, High Flow

1шт.

6

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

7

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

8

87023530

BRACKET

1шт.

9

87019286

COUPLING

.38 Fem 8m8f

1шт.

10

87426293

TEE

SwivelRun 37Fl .50 x .50 x .50

1шт.

11

262159

CAP,3/4" - 16 Fem JIC

Remove When Hydraulic Coupler Option Is Installed

1шт.

12

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

13

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

14

87690479

TEE

Male BR 37Fl 1.0 x .75 x .75

1шт.
