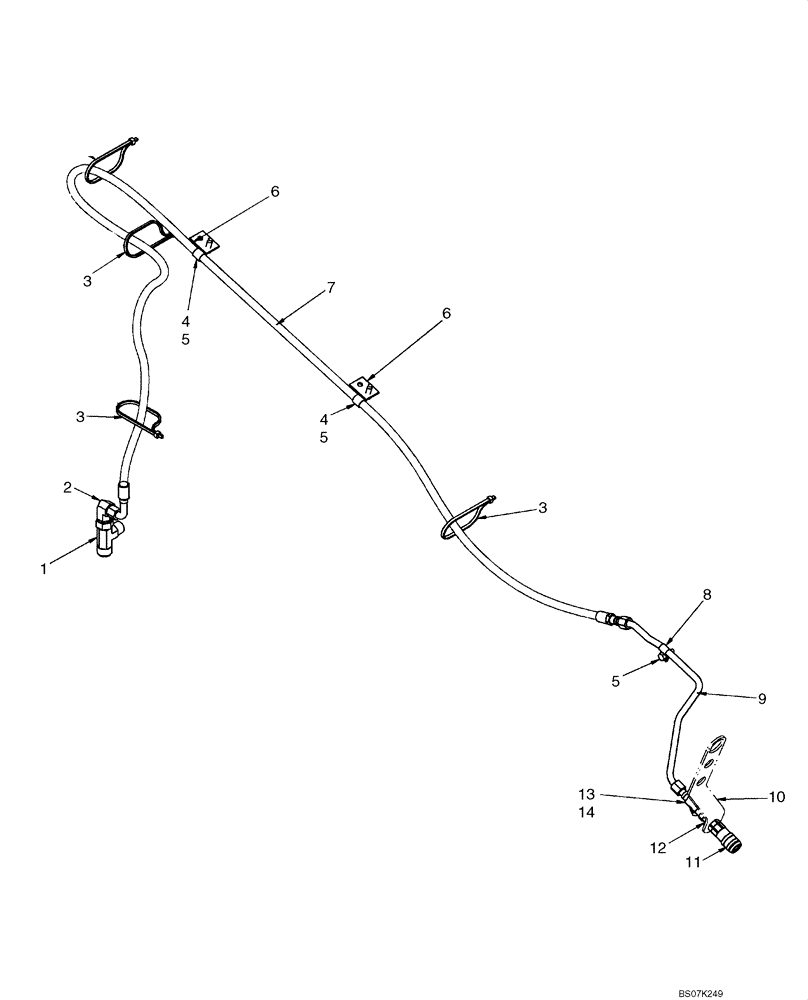

Запчасти Case IH 430 (08-03) - HYDRAULICS - CASE DRAIN; IF USED (08) - HYDRAULICS

87685962

SERVICE KIT

Kit, Loader Arm Case Drain; Incl 1 - 14

1шт.

1

87690479

TEE

Tee, Male Branch 1.0 X 3/4 X 3/4 NP

1шт.

2

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

4

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

5

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

6

87447813

BRACKET

2шт.

7

87659253

HOSE,9.53mm ID x 2880mm L, SAE 100R6

Hose, Loader Arm Case Drain, 2880mm (113 13/32 in.)

1шт.

8

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

87024208

HYD TUBE,12.70 mm OD

1шт.

10

87023530

BRACKET

1шт.

11

87019286

COUPLING

FF Coupler .38 Female 8MFB

1шт.

12

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

13

87426293

TEE

Tee, Swivel 37Fl 1/2 X 1/2 X 1/2

1шт.

14

262159

CAP,3/4" - 16 Fem JIC

1шт.
