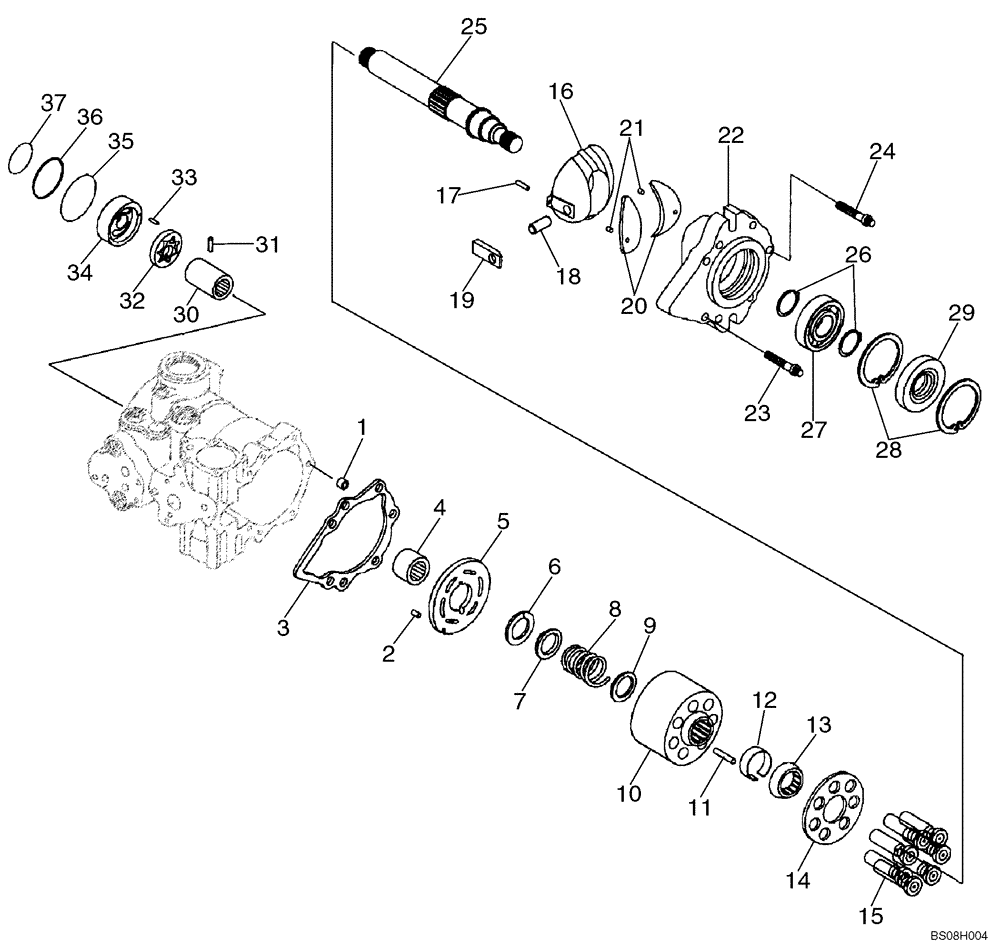

Запчасти Case IH 430 (06-29) - PUMP, TANDEM - FRONT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
Front Pump
1шт.
87643160
PUMP,42.9 CC
Incl. 1 - 37
1шт.
87643160R
430 SERIES 3 ASN N7M479683 (1/08-)
REMAN-HYD PUMP
1шт.
87643160C
Return Number
CORE-HYDRAULIC PUMP
1шт.
1
N13994
SPACER
1шт.
2
38-11207
LOCK PIN,4.76mm OD x 11.11mm L, Slotted
1шт.
3
H436704
GASKET,0.79mm Thk
Included in 140008A1 Seal Kit
1шт.
4
278563
NEEDLE BEARING,Needle, 30.16mm ID x 38.1mm OD x 25.4mm W
1шт.
5
86019214
PLATE
1шт.
87051278
HYD PUMP REPAIR KIT
Cylinder Block; Kit Includes Cylinder Block Parts For Rear Pump; Incl. 6 - 15
1шт.
6
NSS
NOT SOLD SEPARAT
Ring, Retaining
2шт.
7
115950A1
WASHER
Washer
2шт.
8
115948A1
SPRING
2шт.
9
115946A1
WASHER
Washer
2шт.
10
NSS
NOT SOLD SEPARAT
Block, Cylinder
2шт.
11
110873A1
PIN,2.38mm OD x 33.53mm L
6шт.
12
115943A1
SNAP RING
Ring, Retaining
2шт.
13
115942A1
GUIDE
2шт.
14
NSS
NOT SOLD SEPARAT
Retainer
2шт.
15
NSS
NOT SOLD SEPARAT
Piston
14шт.
16
87050523
PLATE ASSY.
Variable Swash Plate
1шт.
17
324610A1
PIN
1шт.
18
N13254
PIN
1шт.
19
N13224
SLEEVE
1шт.
87051277
COVER ASSY
Incl. 20 - 22
1шт.
20
87050524
JOURNAL
2шт.
21
86529088
PIN,3.43mm OD x 9.53mm L
2шт.
22
87050525
COVER ASSY
Incl 20, 21
1шт.
23
223677A1
SCREW,Torx, 7/16"
7/16 in
6шт.
24
223680A1
SPECIAL BOLT,Torx, 3/8"
3/8 in
1шт.
25
N13244
SHAFT
1шт.
26
9671424
SNAP RING,#137, Ext
2шт.
27
37203
BALL BEARING,34.99mm ID x 72mm OD x 17mm W
2шт.
28
103-21281
SNAP RING,66.92mm ID x 2.36mm W, Int
1шт.
29
N14103
SEAL
Lip; Included in 140008A1 Seal Kit
1шт.
30
N13234
COUPLING, BREAK AWAY
1шт.
31
N13262
PIN
2шт.
32
N13247
GEAR-SET
1шт.
33
181680A1
PIN,3/16" OD x 13/16" L
1шт.
34
N13999
PLATE,3.9985" OD x 1.58" ID
1шт.
35
H437190
O-RING
Included in 140008A1 Seal Kit
1шт.
36
70923607
O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro
Included in 140008A1 Seal Kit
1шт.
37
H435776
O-RING,44.04mm ID x 51.10mm OD x 7.06mm W
Included in 140008A1 Seal Kit
1шт.
Выбрано товаров: 43
