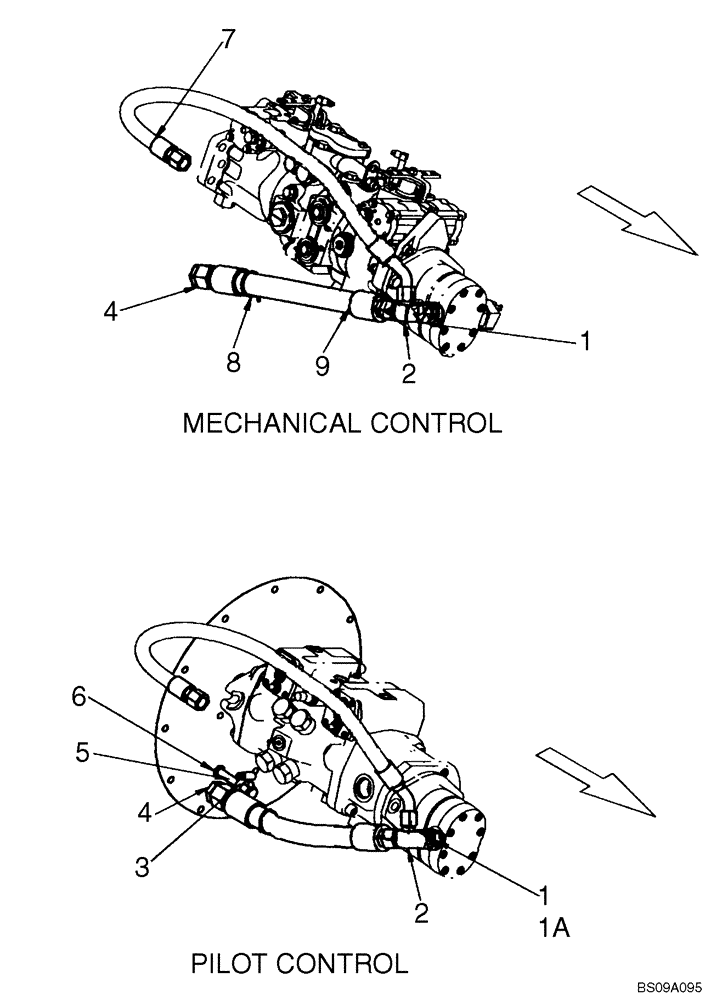

Запчасти Case IH 430 (06-20B) - HYDROSTATICS - RESONATOR (06) - POWER TRAIN

1

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 1A

1шт.

1a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

2

87441649

ADAPTER

1шт.

3

87039085

HOSE CLAMP,32mm - 54mm

Used With Pilot Control Noise Kit

1шт.

4

9790527

PLUG,1-5/16" - 12 JIC

1шт.

5

9501756

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

Used With Pilot Control Noise Kit

1шт.

6

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

Used With Pilot Control Noise Kit

1шт.

7

87720912

HOSE,15.88mm ID x 950mm L

Hose, Valve Supply

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

9

87717826

HOSE,25.4mm ID x 475mm L

Hose, Resonator

1шт.
