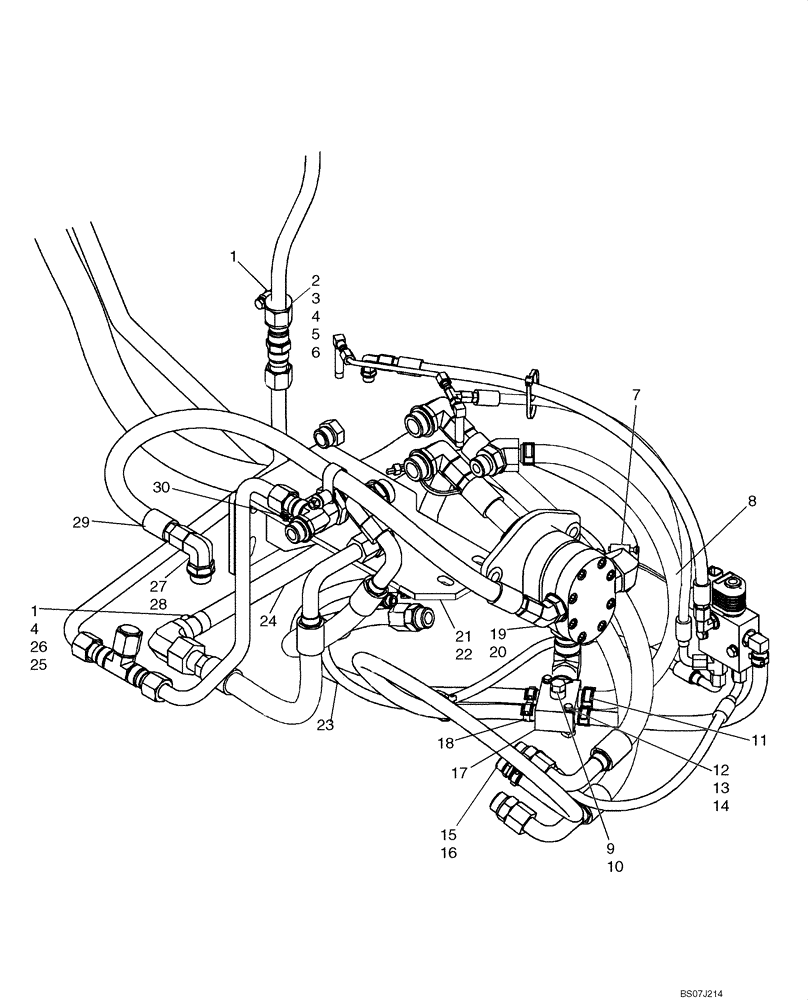

Запчасти Case IH 430 (06-17) - HYDROSTATICS - SUPPLY, RETURN AND DRAIN PLUMBING (MECHANICAL CONTROL) (06) - POWER TRAIN

1

87030567

SQUARE NUT

1-3шт.

2

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

1шт.

3

87042897

SPACER

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2-3шт.

5

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

6

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

1шт.

7

87039085

HOSE CLAMP,32mm - 54mm

2шт.

8

87516030

HOSE,16.00 mm ID x 1360.00 mm

Pump Case Drain, If Used

1шт.

8

87016334

HOSE,15.88mm ID x 535mm L

Pump Case Drain, If Used

1шт.

9

76349

PLUG,9/16" - 18 ORB

Incl. 10

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

12

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

13

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 16

2шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

87437351

MANIFOLD

Return Oil Manifold

1шт.

18

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

19

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 20

1шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 22; If Used

1шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

If Used

1шт.

23

87022175

HOSE,12.7mm ID x 600mm L

Case Drain

1шт.

24

87549661

HYD TUBE,25.4 mm OD x 258.6, 149.1 mm L

Tube, Loop

1шт.

24

87735182

HOSE,19.05mm ID x 460mm L

Tube, Loop; 460 mm (18.11 in); If Used

1шт.

25

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1-2шт.

26

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

If Used

2шт.

27

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 28

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

87547070

HOSE,15.88mm ID x 1000mm L

Valve Supply, 1000mm (39 3/8 in.)

1шт.

30

86536660

HOSE CLAMP,25mm - 44mm

1шт.
