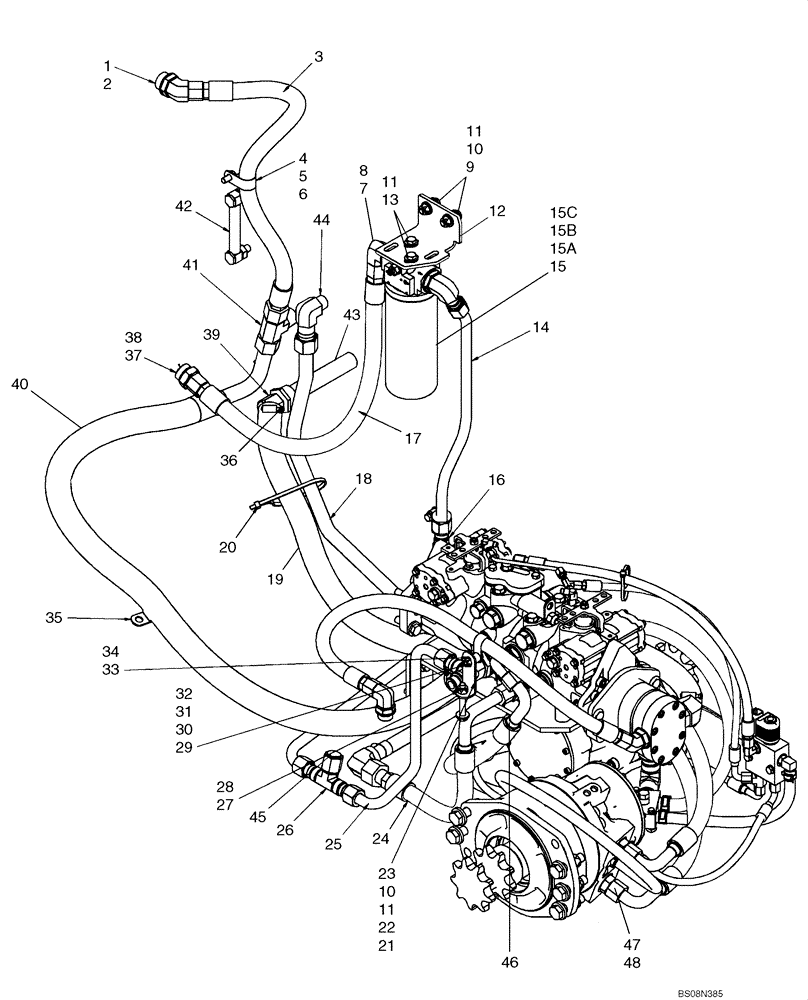

Запчасти Case IH 430 (06-16) - HYDROSTATICS - SUPPLY AND RETURN (06) - POWER TRAIN

1

87657980

ELBOW

Elbow, 45 Deg Adj 37 Fl 3/4 X 1.0 Tube; Incl 2

1шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87653980

HOSE,19.05mm ID x 810mm L, SAE 100R4

Upper Cooler Hose, 810mm (31 7/8 in.)

1шт.

4

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl 8

2шт.

8

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

9

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

10

86512554

NUT,M10 x 1.5, Cl 10

3шт.

11

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

12

87020901

BRACKET, SUPPORTING

1шт.

13

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

14

87660856

HYD TUBE,19.05 mm OD x 422.6, 172.8 mm L

Tube, Valve To Filter

1шт.

15

87430661

FILTER

Long Hydraulic Filter; Incl 15A - 15C

1шт.

15a

87439984

FILTER HEAD

Filter Head Assembly

1шт.

15b

87010593

ELEMENT

Filter Element, Case

1шт.

15c

N13268

PRESSURE SWITCH

1шт.

16

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

17

87720240

HOSE,19.05mm ID x 760mm L

Hose, Lower Cooler, 760mm (29.92 in)

1шт.

18

87584058

HYD TUBE,22.92 mm ID x 25.4 mm OD x 1116.1, 307.7 mm L

Tube, Case Drain, Years: -13-NOV-07

1шт.

18

87734454

HYD TUBE,25.4 mm OD x 772.1, 307.7 mm L

Tube, Case Drain, Start Year: 14-NOV-07

1шт.

19

87396043

HOSE,31.75mm ID x 1560mm L, SAE 100R4

1560mm (61.42 in)

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

21

87458997

BRACKET

1шт.

22

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

23

P24576

SPACER,3/8" Pipe x 11/16"

1шт.

24

87549652

HOSE,19.05mm ID x 500mm L, SAE 100R13

Hose, 500mm (19.69 in); If Used

1шт.

24

87735182

HOSE,19.05mm ID x 460mm L

Hose, 460 mm (18.11 in); If Used

1шт.

25

87446248

HYD TUBE,19.05 mm OD x 344.1, 215.2 mm L

Valve Out To Filter

1шт.

26

15694

TEE,1 1/16"-12 37 Degree

1шт.

27

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 28

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

9628098

NUT,M8 x 1.25, Cl 10

1шт.

30

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

31

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

32

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

33

87418259

FITTING

90 Deg Elbow; Incl 34

1шт.

34

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

35

86639006

CLAMP,38.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

36

87039085

HOSE CLAMP,32mm - 54mm

2шт.

37

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 38

1-2шт.

38

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-2шт.

39

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

1шт.

40

87516031

HOSE,25.4mm ID x 1690.1mm L, SAE 100R4

Hose, 1690mm (66.54 in)

1шт.

41

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

42

87374752

GAUGE

Liquid Level Gauge

1шт.

43

H151399

FILTER STRAINER

1шт.

44

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

45

219606

CAP,1-1/16" - 12 JIC

1шт.

46

87545922

HOSE

Loop, 550 mm (21.65 in); If Used

1шт.

46

87735181

HOSE,19.05mm ID x 565mm L

Loop, 565 mm (22.24 in); If Used

1шт.

47

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 48; 3/4" Tube

1шт.

48

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
