Запчасти Case IH 430 (06-10) - HYDROSTATICS - HOSES (430 WITH PILOT CONTROL) (06) - POWER TRAIN

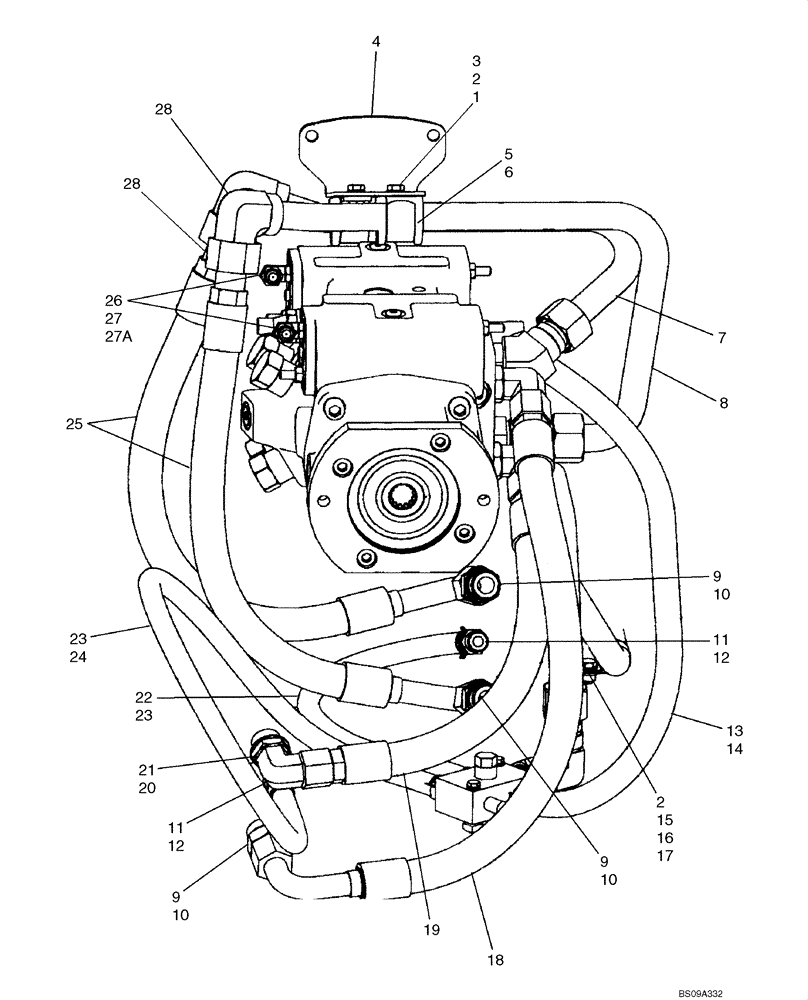

Схема запчастей Case IH 430 - (06-10) - HYDROSTATICS - HOSES (430 WITH PILOT CONTROL) (06) - POWER TRAIN
2
9
27a
1
4
22
15
12
9
14
13
8
25
5
10
10
12
20
19
23
11
17
28
9
24
28
21
7
6
3
18
27
10
16
2
11
23
26

Артикул

Название

Примечание

Количество

1

9628098

NUT,M8 x 1.25, Cl 10

3шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

If Used

2шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

If Used

2шт.

4

87564008

CLAMP BRACKET

1шт.

5

D67297

BLOCK

Isolation

2шт.

6

D68846

CLAMP

2шт.

7

87547068

HYD TUBE,15.88 mm ID x 25.4 mm OD

Motor To Pump Loop

1шт.

8

87600630

HYD TUBE,15.88 mm ID x 25.4 mm OD

Motor To Pump Loop

1шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 10

3шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

11

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl. 12

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

13

87584062

HYDRAULIC HOSE,15.88 mm ID x 725.00 mm

Case Drain

1шт.

14

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

16

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

18

87584059

HOSE,19.05mm ID x 715mm L, SAE 100R13

Motor To Pump Loop, 715mm (28 5/32 in.) Length

1шт.

19

87021266

HOSE ASSY.

Motor To Pump Loop, 560mm (22 in.) Length

1шт.

20

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 21

4шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

22

87022175

HOSE,12.7mm ID x 600mm L

Case Drain

1шт.

23

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.

24

87022174

HOSE ASSY.

Case Drain, 950mm (37 13/32 in.) Length

1шт.

25

87623664

HOSE,19.05mm ID x 610mm L, SAE 100R13

Motor To Pump Loop, 610mm (24 in.) Length

2шт.

26

87604075

ADAPTER

Connector With 1.0 mm Orifice

4шт.

27

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 27A

2шт.

27a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

28

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

Выбрано товаров: 30
