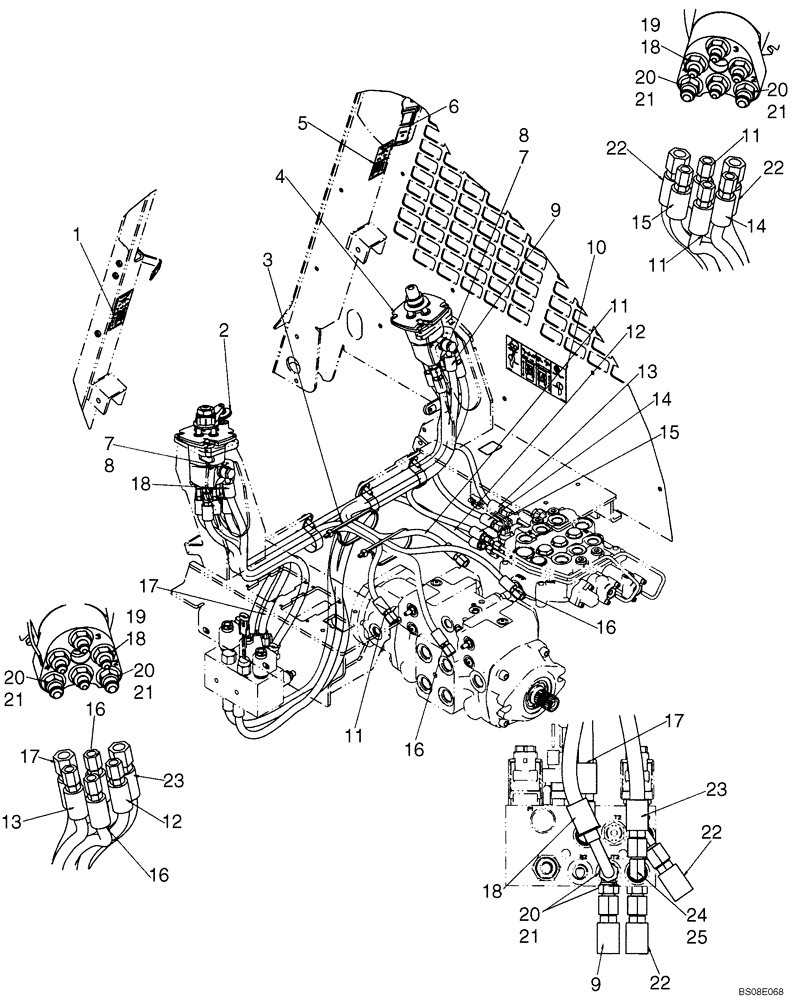

Запчасти Case IH 430 (06-02) - JOYSTICK CONTROL PLUMBING - H PATTERN (WITH PILOT CONTROL) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
87638349
SERVICE KIT
H - Pattern Pilot Control; Incl 1 - 25
1шт.
1
87715689
DECAL
Decal, H - Pattern, LH
1шт.
2
87357240
HYDRAULIC VALVE
Joystick, H - Pattern, LH; See Fig 06-05; If Used
1шт.
2a
87740388
HYDRAULIC VALVE
Replaces 87357240; See Fig 06-05
1шт.
3
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP
2шт.
4
87357241
HYDRAULIC VALVE
Joystick, H - Pattern, RH; See Fig 06-06; If Used
1шт.
4a
87740389
HYDRAULIC VALVE
Replaces 87357241; See Fig 06-06
1шт.
5
87715690
DECAL
Decal, H - Pattern, RH
1шт.
6
87746890
DECAL
Decal, H - Pattern
1шт.
7
933610R1
SEALING RING,M14 x 18 x 1.8
4шт.
8
87622364
BOLT
Bolt 10 Banjo 3/4 Hole Std
2шт.
9
87575289
HYDRAULIC HOSE,9.52 mm ID x 1260.00 mm
Joystick Supply
1шт.
10
87715687
DECAL
Decal, H - Pattern Control Identification
1шт.
11
87584064
HYDRAULIC HOSE,6.35 mm ID x 845.00 mm
Pilot Control
2шт.
12
87604063
HOSE,6.35mm ID x 930mm L
Hose, Pilot Control, 930mm (36 5/8 in.) Length
1шт.
13
87604061
HOSE,6.35mm ID x 1055mm L
Hose, Pilot Control, 1055mm (41 9/16 in.) Length
1шт.
14
87604069
HOSE,6.35mm ID x 490mm L
Hose, Pilot Control, 490mm (19 9/32 in.) Length
1шт.
15
87604062
HOSE,6.35mm ID x 590mm L
Hose, Pilot Control, 590mm (23 1/4 in.) Length
1шт.
16
87584065
HYDRAULIC HOSE,6.35 mm ID x 975.00 mm
Pilot Control
2шт.
17
87684180
HOSE,9.53mm ID x 620mm L
Hose, Joystick Drain, 620mm (24 13/32 in.) Length
1шт.
18
139398
HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC
Incl 19
8шт.
22
87684218
HOSE,9.53mm ID x 1300mm L
Hose, Joystick Supply Or Drain, 1300mm (51 3/16 in.) Length
2шт.
23
87684217
HOSE,9.53mm ID x 690mm L
Hose, Joystick Supply, 690mm (27 3/16 in.) Length
1шт.
24
86526
ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB
Incl 25
1шт.
Выбрано товаров: 28
