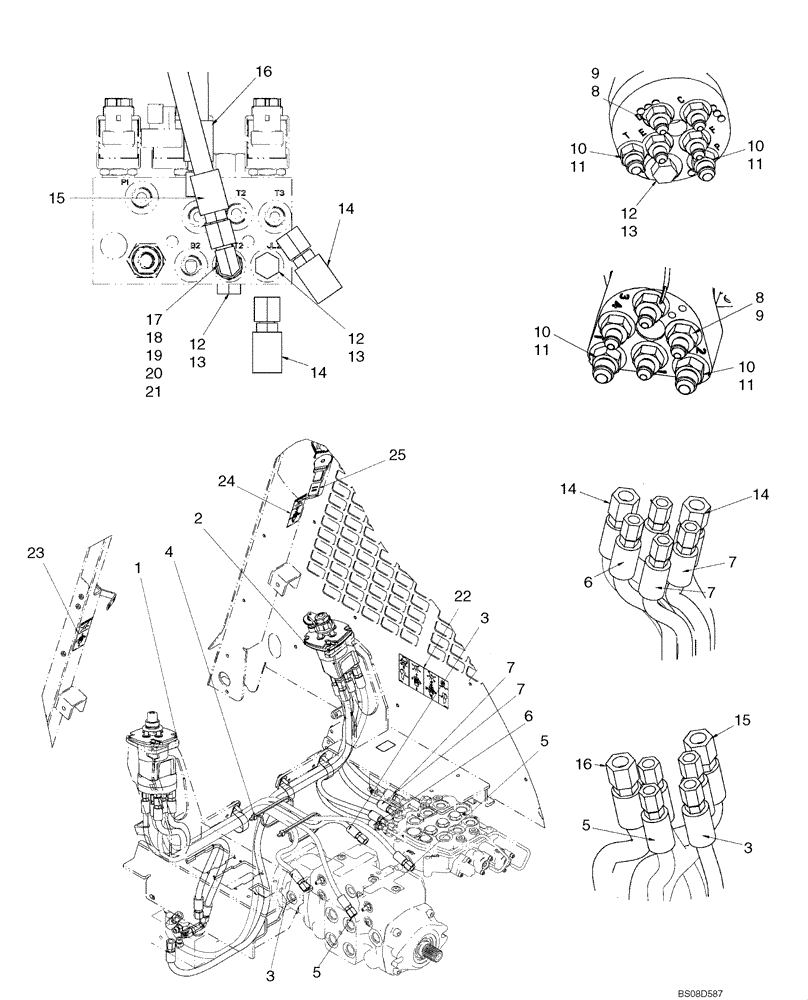

Запчасти Case IH 430 (06-01) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (WITH PILOT CONTROL) (06) - POWER TRAIN

87616983

SERVICE KIT

Kit, ISO Pattern Controls; Incl 1 - 25

1шт.

1

87600622

CONTROL BLOCK

Joystick Valve, ISO Pattern, LH; See Fig. 06-03

1шт.

2

87600623

VALVE

Joystick Valve, ISO Pattern, RH; See Fig. 06-04

1шт.

3

87584064

HYDRAULIC HOSE,6.35 mm ID x 845.00 mm

Pilot

2шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

5

87584065

HYDRAULIC HOSE,6.35 mm ID x 975.00 mm

Pilot

2шт.

6

87604062

HOSE,6.35mm ID x 590mm L

Pilot Hose, 590mm (23 7/32 in.)

2шт.

7

87604069

HOSE,6.35mm ID x 490mm L

Pilot Hose, 490mm (19 9/32 in.)

2шт.

8

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 9

8шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

10

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 11

4шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

12

76349

PLUG,9/16" - 18 ORB

Incl 13

3шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

14

87684218

HOSE,9.53mm ID x 1300mm L

Hose, Joystick Supply/Drain, 1300mm (51 3/16 in.)

2шт.

15

87604071

HOSE

Joystick Supply, 680mm (26 3/4 in.)

1шт.

16

87684180

HOSE,9.53mm ID x 620mm L

Hose, Joystick Drain, 620mm (24 13/32 in.)

1шт.

17

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 18

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

87573371

ADAPTER

Adapter, 3/8 in. Male X 3/8 in. Female; Incl 20, 21

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

87715688

DECAL

Decal, Control Identification, ISO - Pattern

1шт.

23

87715691

DECAL

Decal, ISO - Pattern, LH

1шт.

24

87715692

DECAL

Decal, ISO - Pattern, RH

1шт.

25

87746891

DECAL

Decal, ISO - Pattern

1шт.
