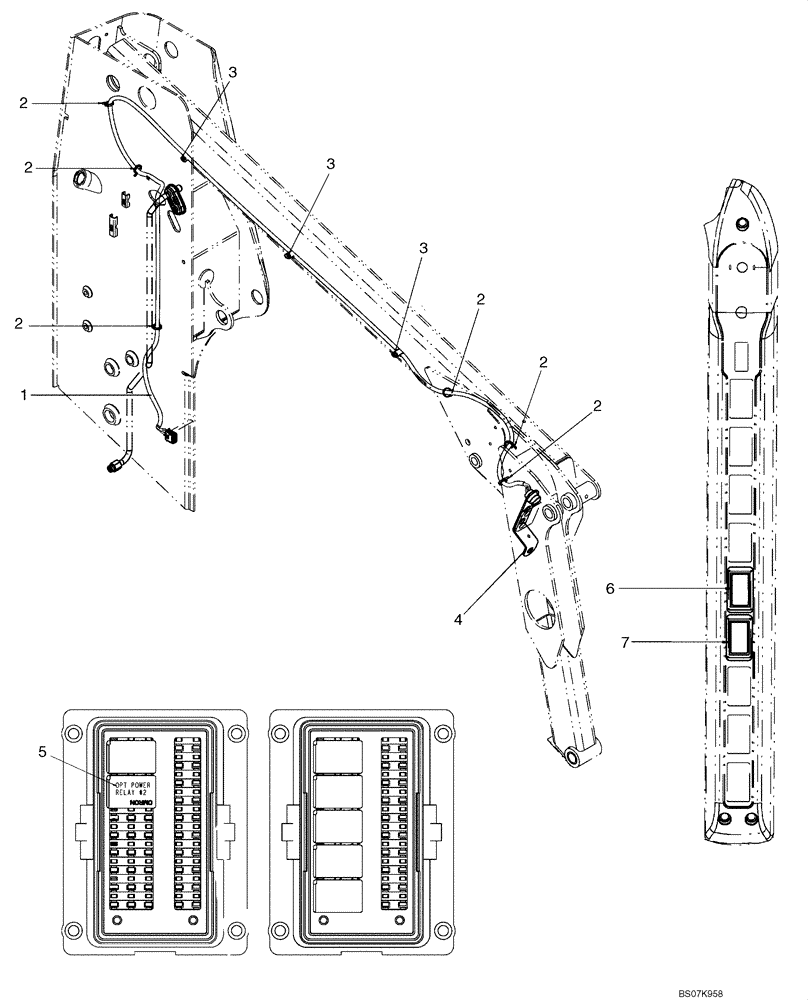

Запчасти Case IH 430 (04-28) - ELECTRIC, FRONT AUXILIARY (04) - ELECTRICAL SYSTEMS

87640048

SERVICE KIT

Kit, Front Auxiliary Electric; Incl 1 - 11

1шт.

1

87441574

WIRE HARNESS

Front Auxiliary Harness; Incl. 1A & 1B

1шт.

1a

490691C1

LOCK WASHER,#18 Shell

Used with bracket 87449992

1шт.

1b

490692C1

LOCK NUT,#18 Shell

Used with bracket 87449992

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

6шт.

3

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

4

87023530

BRACKET

1шт.

5

87655334

RELAY,12V, 35A, Micro

Relay

1шт.

6

87634134

SWITCH

Rocker Switch, Auxiliary Electric I/O

1шт.

7

87634135

SWITCH

Rocker Switch, Auxiliary Electric F/R

1шт.

8

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

Not Illustrated

1шт.

9

87449992

BRACKET

Bracket, Auxiliary Electric; Not Illustrated

1шт.

10

87453780

BRACKET

Bracket, Auxiliary Electric With Case Drain; Not Illustrated

1шт.

11

87458118

BRACKET

Bracket, Auxiliary Electric Mount; Not Illustrated

1шт.
