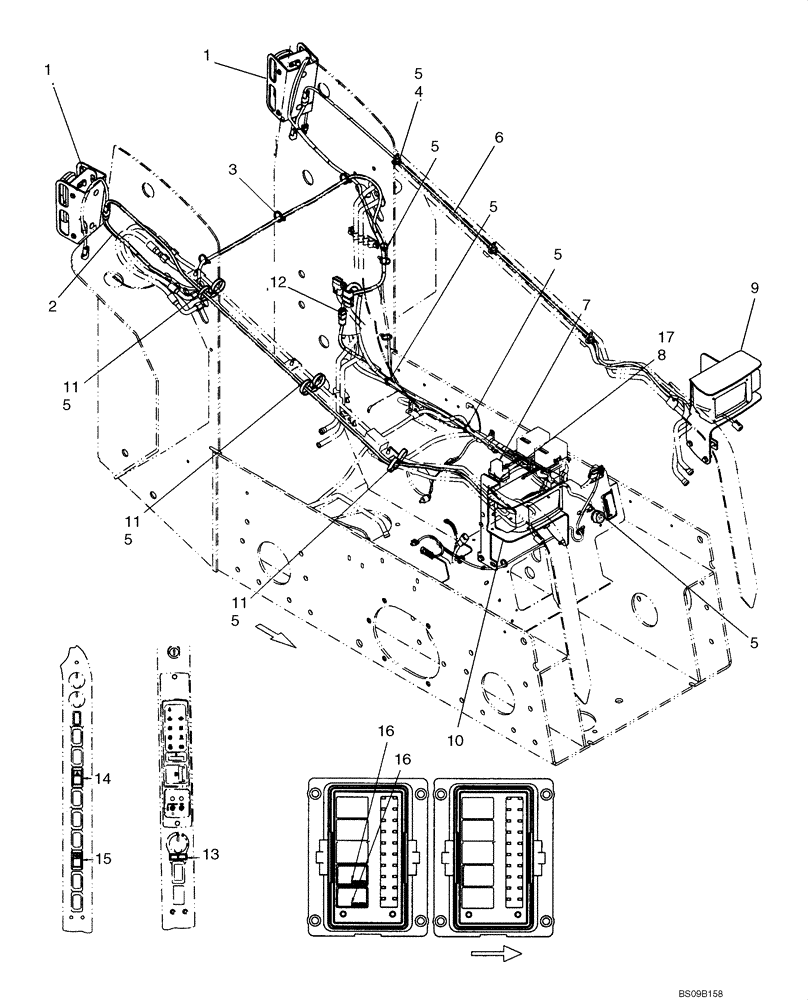

Запчасти Case IH 420 (04-21) - ELECTRICAL - ROAD LIGHTS (EUROPE) (04) - ELECTRICAL SYSTEMS

87676260

SERVICE KIT

Kit, Road Lights (EU); Incl 1 - 19

1шт.

1

REF

INSTRUCTION

Rear Lights; See Fig 04-22

2шт.

2

87673077

HARNESS

Harness, Turn Signal

1шт.

3

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

4

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

If Used

3шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4-16шт.

6

87673079

HARNESS

Harness, Turn Signal Loader Arm

2шт.

7

388457A1

RELAY

Time Delay, Road Lights, Europe; If Used

1шт.

8

9821783

FLASHER UNIT

1шт.

9

REF

INSTRUCTION

Headlamp Mounting, LH; See Fig 04-20A

1шт.

10

REF

INSTRUCTION

Headlamp Mounting, RH; See Fig 04-20A

1шт.

11

87659208

CIRCLIP

Strap, Dual Tie Releasable; If Used

3шт.

12

87673070

HARNESS

Harness, EU Adapter; If Used

1шт.

12

87746197

HARNESS

Harness, EU Adapter

1шт.

13

86604657

INDICATOR, TURN SIGN

1шт.

14

87634133

SWITCH

Rocker Switch, Hazard Lights

1шт.

15

87642912

SWITCH

Rocker Switch, Loader Lock

1шт.

16

87655334

RELAY,12V, 35A, Micro

Relay, 35A, Road Lights

2шт.

17

86500939

SELF-TAP SCREW,HWH, #10 - 16 x 3/8"

1шт.
