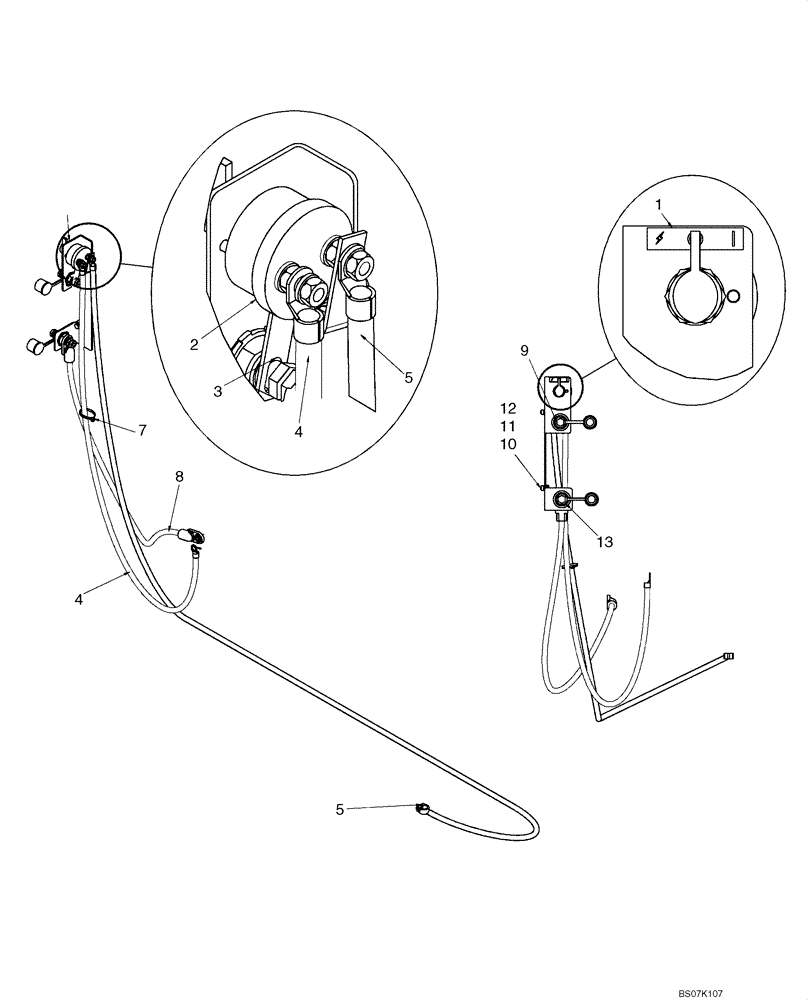

Запчасти Case IH 420 (04-17) - DISCONNECT SWITCH - REMOTE JUMP START (04) - ELECTRICAL SYSTEMS

87638342

SERVICE KIT

Kit, Battery Disconnect And Remote Jump Start; Incl 1 - 13

1шт.

1

176332A1

DECAL

Decal, Battery Disconnect

1шт.

2

87458467

ROTARY SWITCH

Master Disconnect Switch

1шт.

3

399665A2

ANCHOR

Strip, Battery Jump Start

1шт.

4

87622960

NEG BATTERY CABLE

Battery Cable, Negative, 1200mm (47 1/4 in.)

1шт.

5

87444992

CABLE ASSY.

Battery Cable, Negative, 2900mm (114 3/16 in.)

1шт.

6

87624401

BRACKET

Remote Jump Start Bracket

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

8

87052671

CABLE ASSY.

Battery Cable, Positive

1шт.

9

399384A1

TERMINAL CONNECTOR

Terminal, Negative Remote Jump Start

1шт.

10

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

11

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

12

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

13

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Terminal, Positive Remote Jump Start

1шт.
