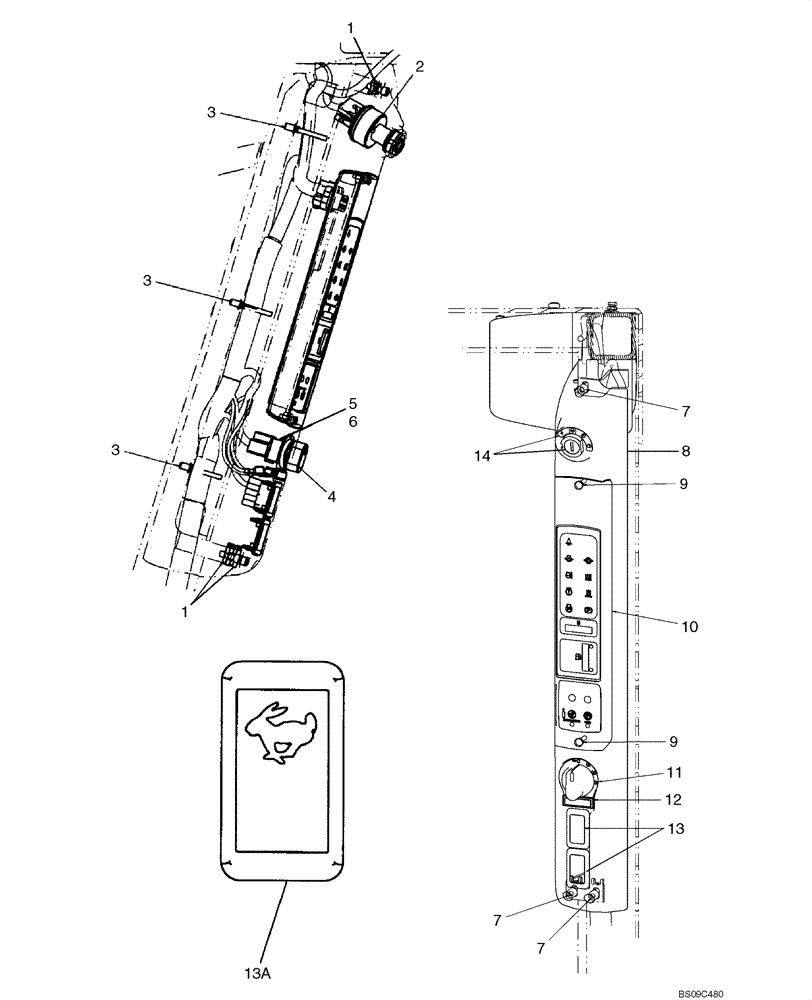

Запчасти Case IH 420 (04-09) - CONSOLE - RH (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
86521425
SPRING NUT,Tinn, U, 1/4"-20
3шт.
2
282775A1
IGNITION SWITCH
Ignition Switch And 2 Keys
1шт.
3
87668737
CABLE TIE,203.2mm L, Nylon, Black
Strap With Fastener
3шт.
5
86729669
SWITCH
Blower/Light Switch
1шт.
6
87310592
JAM NUT,7/16" - 28, Gr 5
1шт.
7
280272
HEX SOC SCREW,1/4" - 20 x 3/4"
3шт.
8
87665327
CONSOLE
Console, RH; If Used
1шт.
8
84128478
CONSOLE
Console, RH
1шт.
9
86511042
SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8
2шт.
10
87638864
INSTRUMENT PANEL
Instrument Panel, Standard (Shown In Illustration)
1шт.
10
87638864R
Remanufactured Instrument Panel
REMAN ELECT CONTROL
1шт.
10
87638864C
Return Number, INSTRUMENT PANEL
CORE-ELECTRONIC CONT
1шт.
10
84128950
CLUSTER
Instrument Panel, Case Deluxe; Replaces 8749421, 87638865, 87476813, 87488255
1шт.
10
84128950R
REMAN-INSTRUMENT CLUSTER Remanufactured Instrument Cluster
REMAN-INSTR CLUSTER
1шт.
10
84128950C
CORE-INSTRUMENT CLUSTER Return Number, CLUSTER
CORE-CLUSTER, INSTR
1шт.
420 Before Serial Number NAM422353 NA; 420 BSN NAM421109 EU
1шт.
420CT Before Serial Number NAM423057 NA
1шт.
10
84251468
MILES COUNTER DEVICE
420 After Serial Number NAM422354 NA; 420 ASN NAM421110 EU
1шт.
10
84251468R
420 TIER 3, N7M466710, After Serial Number NAM422354 NA (1/08-)
REMAN-INSTR CLUSTER
1шт.
10
84251468C
Return Number
CORE-CLUSTER, INSTR
1шт.
10
87494291C
CORE-INSTRUMENT CLUSTER Return Number, CLUSTER
CORE-CLUSTER, INSTR
1шт.
420CT After Serial Number NAM423058 NA
1шт.
11
87677739
DECAL
Decal, Light Switch; If Used; See Fig 09-67A
1шт.
11
87492705
DECAL
Decal, Light Switch; See Fig 09-67A
1шт.
12
86627432
PLASTIC PLUG
1шт.
13
126844A1
PLUG,1.427” x .62” , Plastic
Switch Hole Cover
1-2шт.
13a
87634136
SWITCH
High Speed Indicator; If Used
2шт.
14
87735655
DECAL
Decal, Key Switch;If Used; See Fig 09-67
1шт.
14
87629079
DECAL
Decal, Key Switch; See Fig 09-67
1шт.
Выбрано товаров: 30
