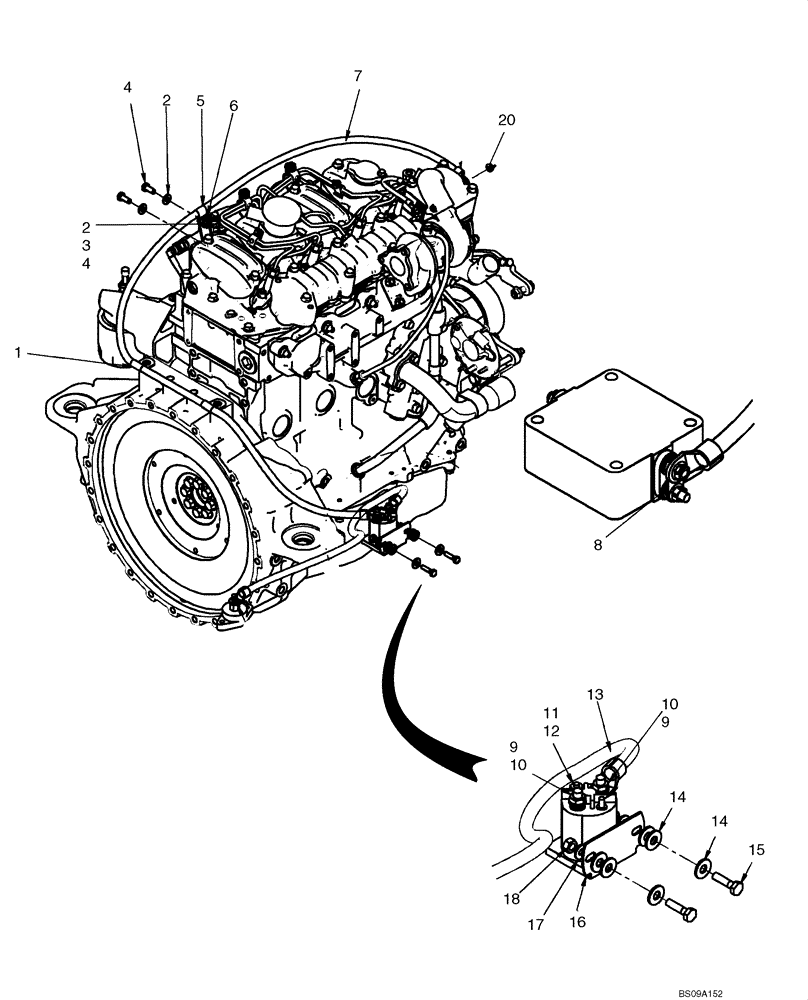

Запчасти Case IH 420 (04-07) - ELECTRICAL - GRID HEATER (04) - ELECTRICAL SYSTEMS

1

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

3

9706690

NUT,M8 x 1.25, Cl 8

1шт.

4

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

3шт.

5

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

6

87591549

BRACKET

Grid Heater Bracket

1шт.

7

87709058

CABLE

1шт.

8

87493115

Terminal Jumper Bar

BAR

1шт.

9

80681

LOCK WASHER,5/16"

2шт.

10

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

11

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

12

87825

NUT,#10-32

1шт.

13

87047862

CABLE,595mm L

1шт.

14

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

15

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

16

87406968

SOLENOID SWITCH

1шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

19

629086

DANGER DECAL

Not Illustrated; If Used

1шт.

20

86511444

FLANGE NUT,Hex, M6 x 1

If Used

1шт.

21

4895316

HEATER

Not Shown; See Fig. 02-19

1шт.
