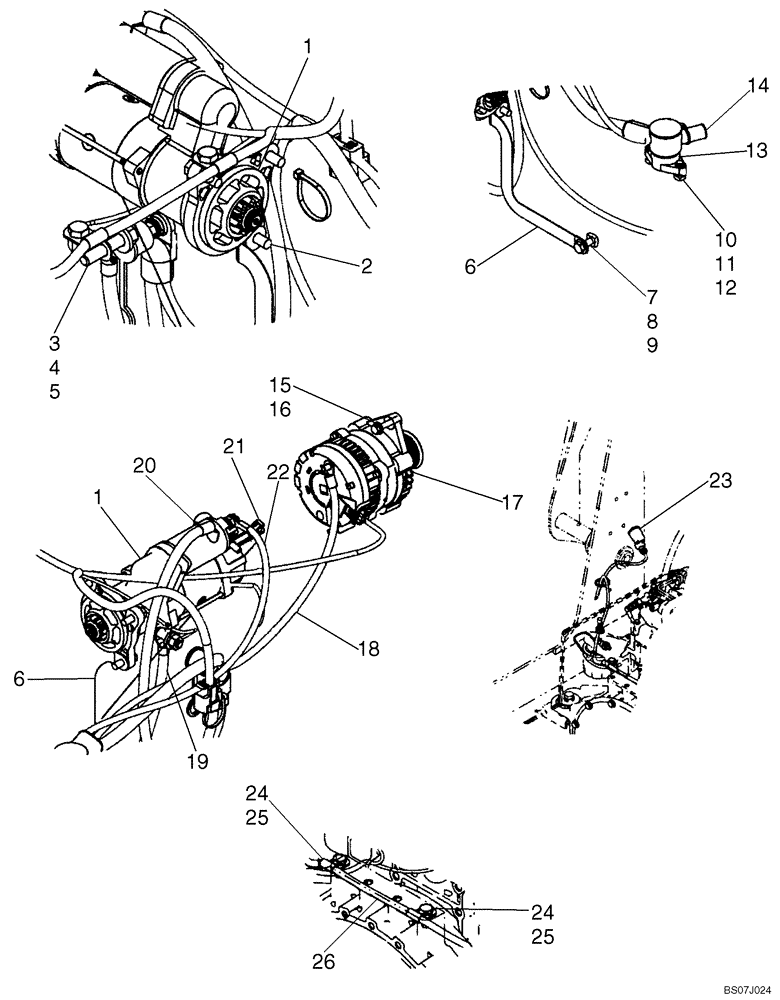

Запчасти Case IH 420 (04-04) - ENGINE - ELECTRICAL (420) (04) - ELECTRICAL SYSTEMS

1

87040161

STARTER MOTOR,12V, 2.7kW

2.7KW, Denso Starter; If Used; Incl Jumper Harness 87040162

1шт.

1

87040161R

REMAN-STARTER,12V, 2.7kW

Denso Starter, Remanufactured

1шт.

1

87040161C

CORE-STARTER,12V, 2.7kW

Return Number Denso Starter, Core

1шт.

1

87366159

STARTING MOTOR

Delco Remy Starter

1шт.

1

87366159R

REMAN-STARTER

Remanufactured Starter

1шт.

1

87366159C

CORE-STARTER

Return Number

1шт.

1

87638510

STARTER MOTOR,12V, 2.7kW

3.0KW PA90S, Denso Starter; IfUsed

1шт.

1

87638510R

REMAN-STARTER,12V, 2.7kW

Reman for New PN 87638510

1шт.

1

87638510C

Return Number

CORE-STARTER,12V, 2.7kW

1шт.

1a

87040162

HARNESS

Starter Harness Jumper Used With Denso Starter 87040161

1шт.

2

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

3

9706685

NUT,M12 x 1.75, Cl 8

1шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

5

87458961

STUD

1шт.

6

87648689

GROUND STRAP

1шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

8

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

9

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

1шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

12

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

13

87630124

POST

Power Distribution Stud

1шт.

14

87630125

BOOT

Battery Cable Boot

1шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

If Used

1шт.

16

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

If Used

1шт.

17

87038475

ALTERNATOR

Replaces 87042118

1шт.

17

87038475R

REMAN-ALTERNATOR

Reman For New PN 87038475

1шт.

17

87038475C

CORE-ALTERNATOR

Return Number

1шт.

17

84230294R

REMAN-ALTERNATOR

420 w/Tier 3 Eng., Aft. SN N7M466710

1шт.

17

84230294C

Return Number

CORE-ALTERNATOR

1шт.

17

SBA185046150R

REMAN-ALTERNATOR

12V, 35 Amp

1шт.

17

SBA185046150C

CORE-ALTERNATOR

Return Number

1шт.

18

87742136

CABLE,825mm L

Replaces 87620458 And 87713728; Harness, Starter To Alternator/Start Relay

1шт.

19

338030A1

CABLE ASSY.

1524mm (60in); Battery Cable, Negative; If Used

1шт.

19

87713283

NEG BATTERY CABLE

1645mm (64.76in)

1шт.

20

87052670

CABLE ASSY.

Battery Cable, Positive

1шт.

21

87053083

HARNESS

Harness, Starter Jumper; Use With Starter 87638510

1шт.

22

87652238

CABLE

547mm (21.54in); Starter To Power Distribution Block; If Used

1шт.

22

87741596

CABLE,614mm L

614mm (24.17in); Replaces 87707133, 613.82mm (24.17in); Starter To Power Dist Block

1шт.

23

87013666

SWITCH,Air Filter Restriction

Switch, Air Restriction

1шт.

24

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1-2шт.

25

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

Clamp, Insulated 11.1mm X M12 Bolt; If Used

2шт.

25

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

26

87720457

HARNESS

Harness, F5C Engine; Replaces 87620452 And 87673098

1шт.

27

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

Not Illustrated; If Used

1шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Replaces 87000312; Not Illustrated

5шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Not Illustrated

1шт.
