Запчасти Case IH 420 (03-08) - FUEL FILTER (87546691) (03) - FUEL SYSTEM

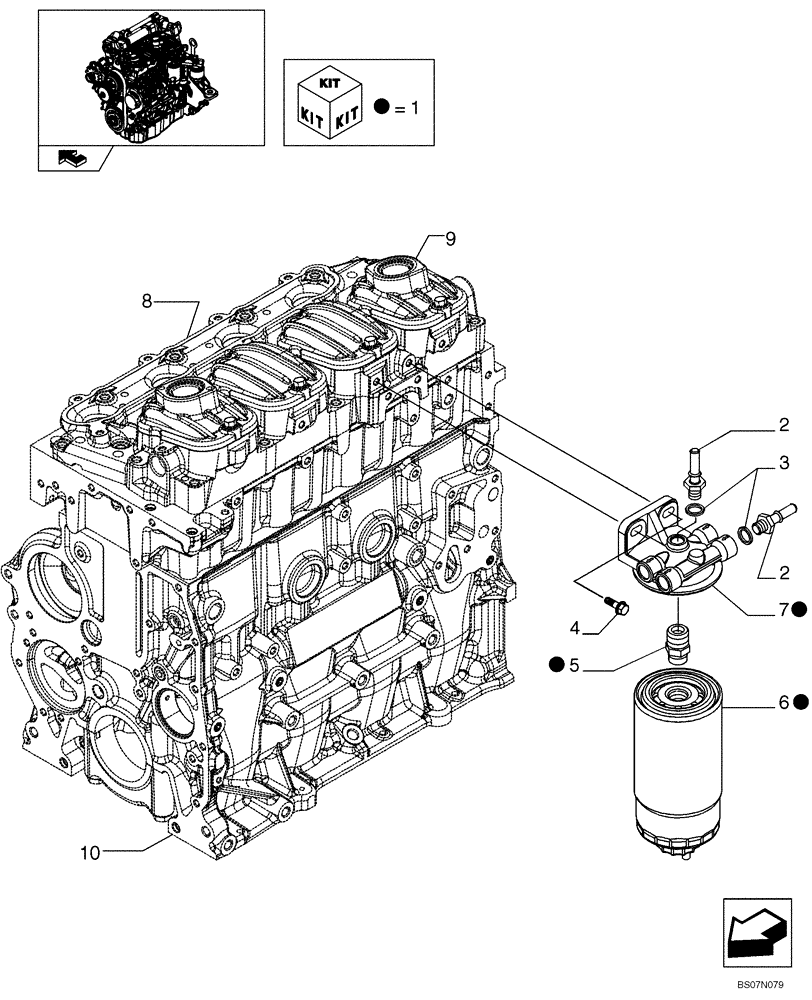

Схема запчастей Case IH 420 - (03-08) - FUEL FILTER (87546691) (03) - FUEL SYSTEM
2
8
1
10
7
9
6
3
5
4
2

Артикул

Название

Примечание

Количество

1

504182845

FUEL FILTER

1шт.

2

500344936

UNION,M14 x 1.5

Fitting, M14X1,5

2шт.

3

4894721

SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk

2шт.

4

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 25

2шт.

5

42545574

NIPPLE

1шт.

6

84477348

FUEL FILTER

1шт.

7

504287001

FILTER HEAD

1шт.

8

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.

9

REF

INSTRUCTION

See Figure 02-17, Cylinder Head Covers

1шт.

10

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.

Выбрано товаров: 10
