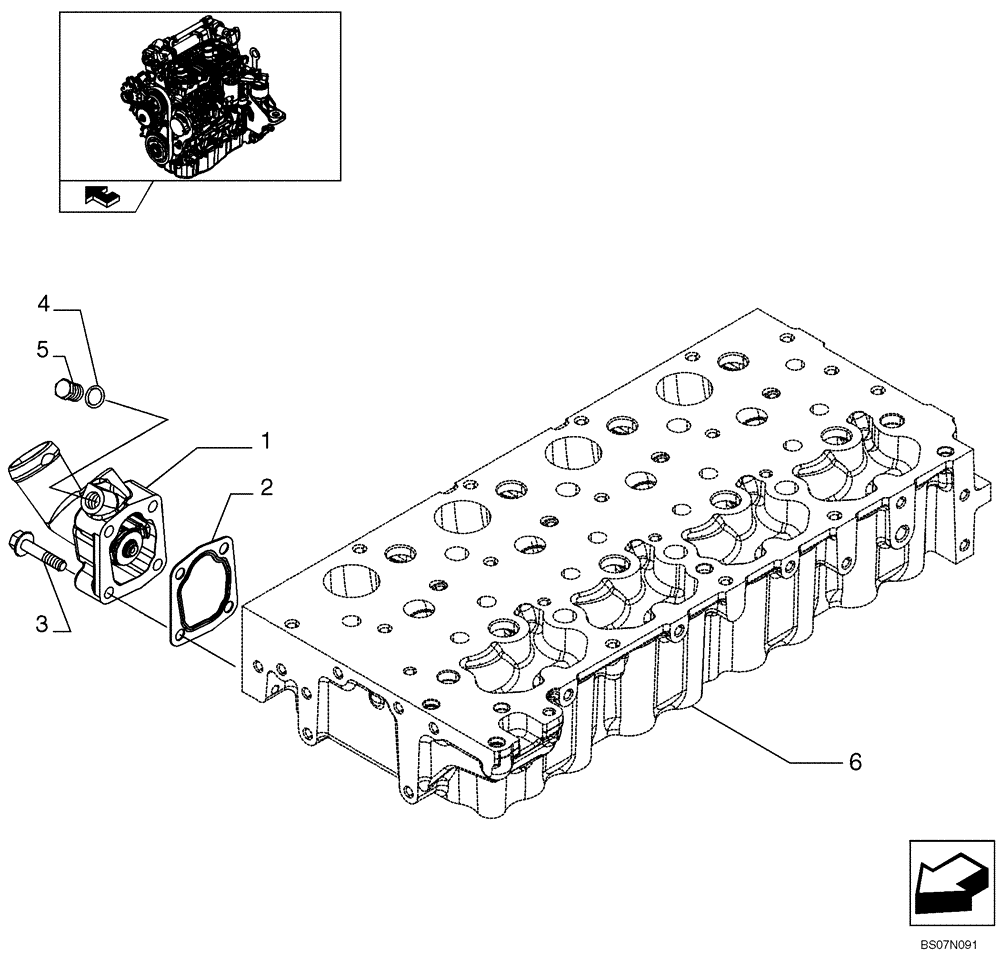

Запчасти Case IH 420 (02-35) - TEMPERATURE CONTROL (THERMOSTAT) (87546691) (02) - ENGINE

1

504209127

THERMOSTAT

1шт.

2

504164205

GASKET

1шт.

3

16586725

BOLT,Hex, M8 x 1.25 x 40mm

M8 x 1.25 x 40

4шт.

4

10284460

WASHER,M10.2 x 16 x 1.5, Copper

1шт.

5

16992115

PLUG,Threaded, M10 x 1

1шт.

6

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.
