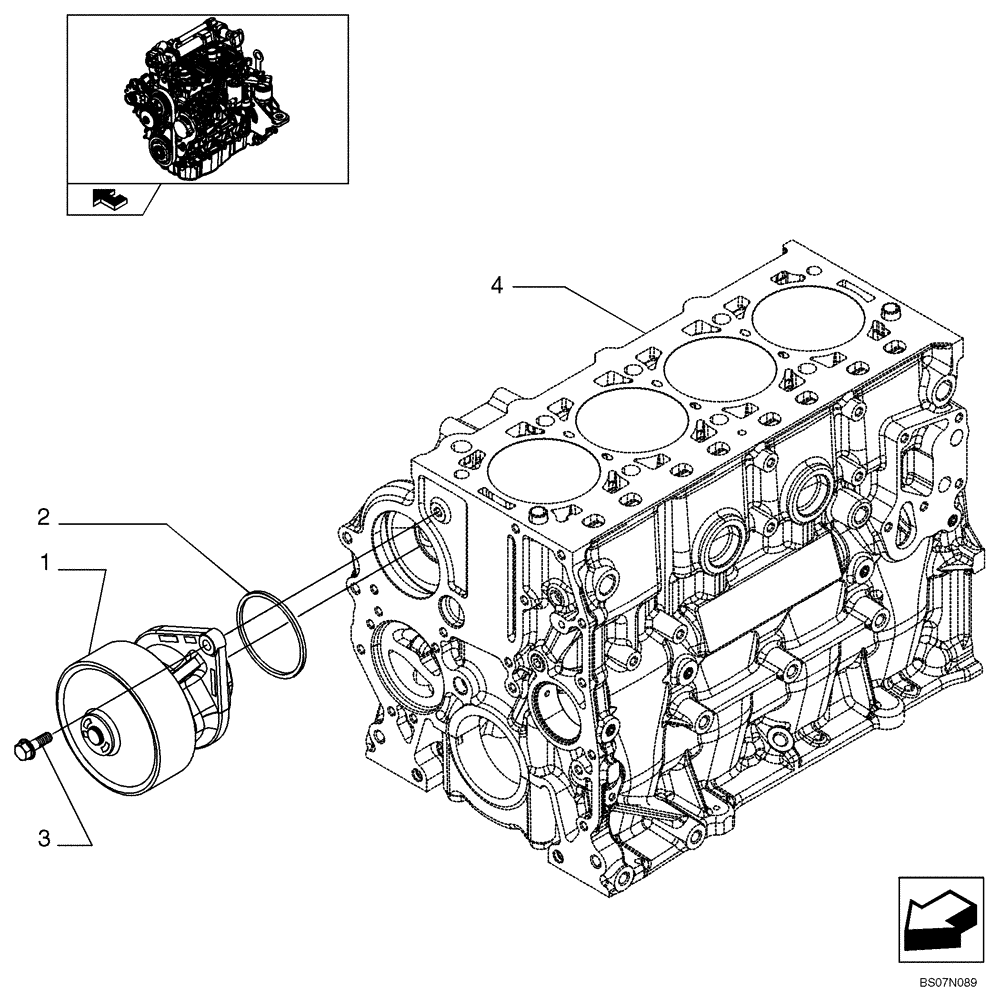

Запчасти Case IH 420 (02-33) - WATER PUMP & RELATED PARTS (87546691) (02) - ENGINE

1

504216828

WATER PUMP

1шт.

504216828R

REMAN-WATER PUMP

420 - TIER 3, 420NA N7M466710 (1/08-), 420CT SERIES 3,ASN N7M455401 (1/08-3/11)

1шт.

504216828C

CORE-WATER PUMP

Return Number

1шт.

2

2852047

SEALING RING,Square, 5.16mm Thk x 88.27mm ID

SEALRING

1шт.

3

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 25

2шт.

4

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.
