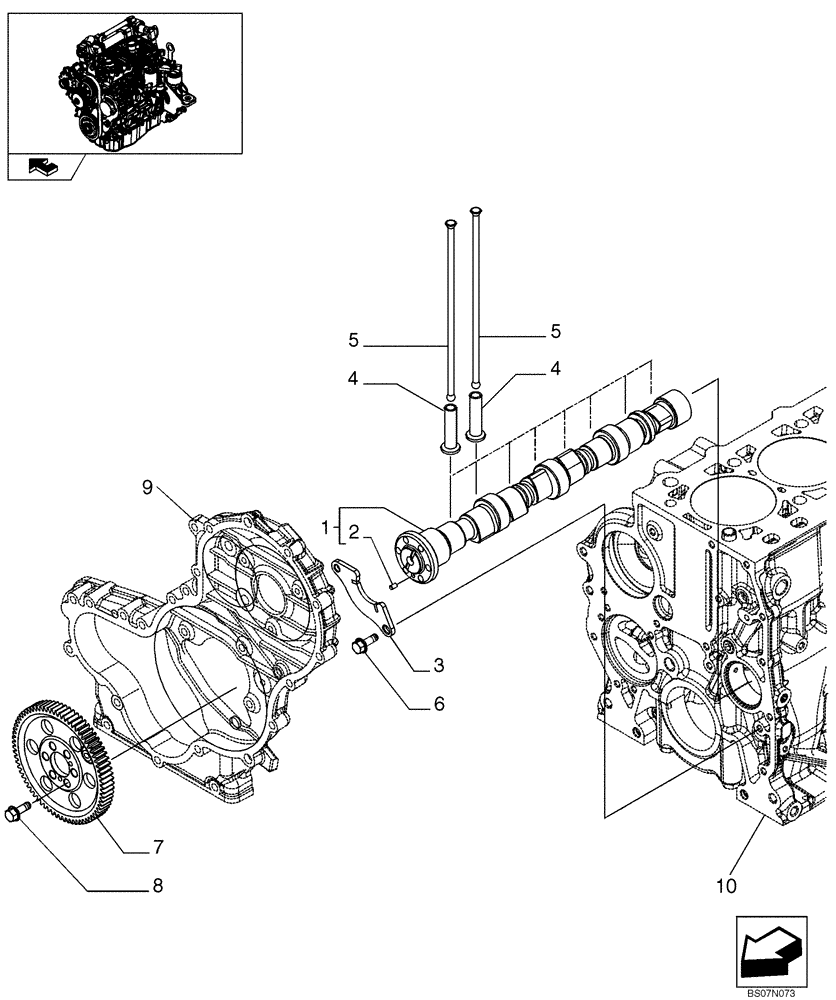

Запчасти Case IH 420 (02-27) - CAMSHAFT - TIMING CONTROL (87546691) (02) - ENGINE

1

504272265

CAMSHAFT

1шт.

1

504272265R

REMAN-CAMSHAFT

420 Skid Steer - Tier 3, 420NA N7M466710 (1/08-), 420CT Compact Track Loader - Series 3, ASN N7M455401 (1/08-3/11)

1шт.

1

504272265C

Return Number

1шт.

2

10839510

DOWEL,M6 x 9

1шт.

3

4897457

SUPPORT

1шт.

4

98471524

TAPPET

+0,0

8шт.

5

504163240

PUSH ROD

8шт.

6

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

7

504240396

GEAR

1шт.

8

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

6шт.

9

REF

INSTRUCTION

See Figure 02-13, Engine Block Front Cover

1шт.

10

REF

INSTRUCTION

See Figure 02-11, Cylinder Bock And Related Parts

1шт.
