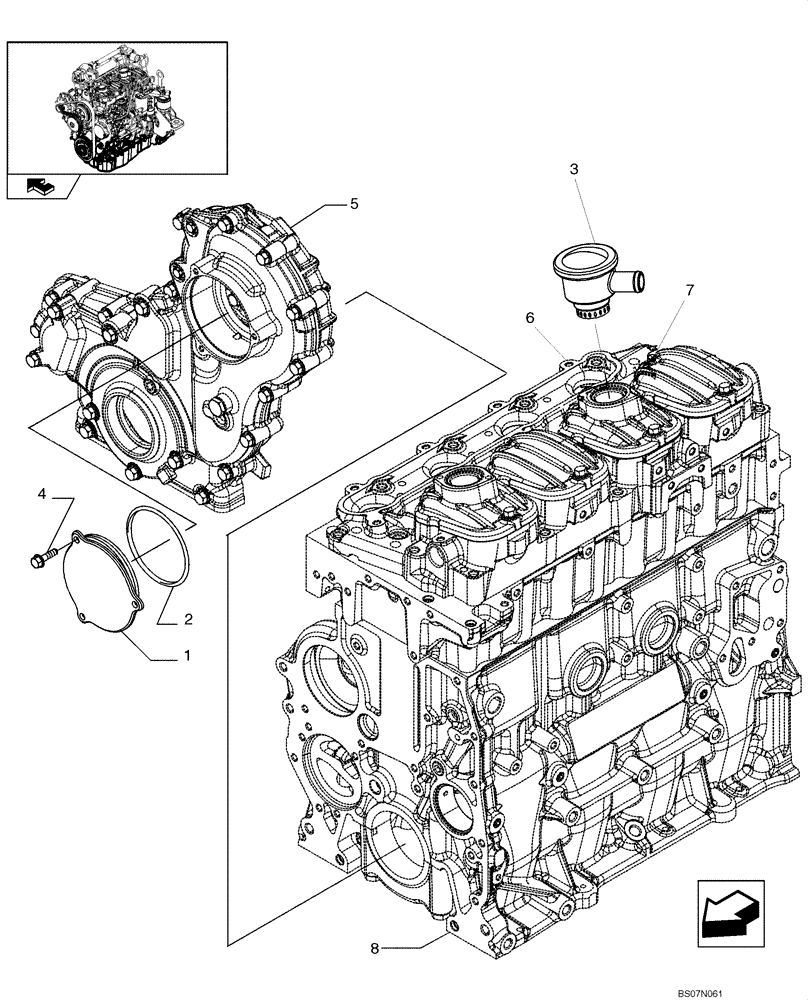

Запчасти Case IH 420 (02-15) - ENGINE BREATHERS (87546691) (02) - ENGINE

1

504216814

COVER

Cover

1шт.

2

17291281

GASKET,94.84mm ID x 3.53mm Thk

M98.84 Dia x 3.53 SP

1шт.

3

504254884

BREATHER

1шт.

4

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

3шт.

5

REF

INSTRUCTION

See Figure 02-13, Engine Block Front Cover

1шт.

6

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.

7

REF

INSTRUCTION

See Figure 02-17, Cylinder Head Covers

1шт.

8

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.
