Запчасти Case IH 420 (09-73) - DECALS - BRAZILIAN PORTUGUESE, CANADIAN FRENCH, LATIN AMERICAN SPANISH (09) - CHASSIS

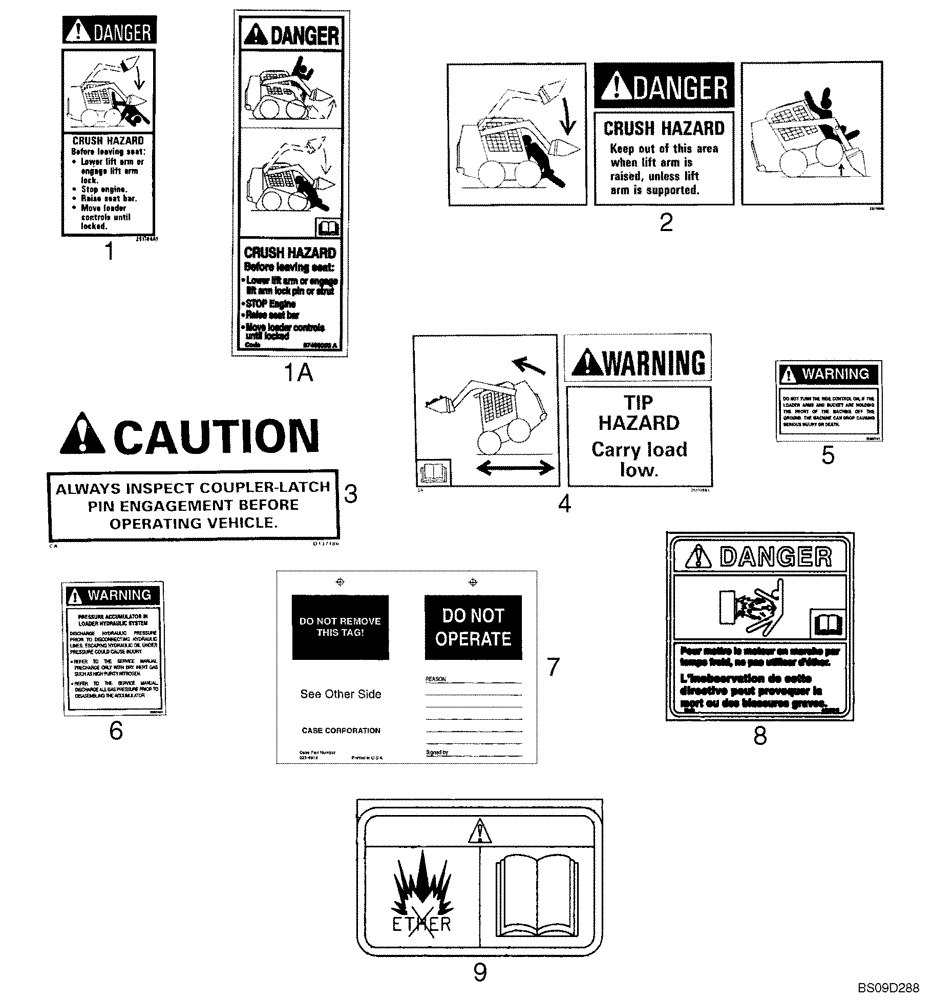

Схема запчастей Case IH 420 - (09-73) - DECALS - BRAZILIAN PORTUGUESE, CANADIAN FRENCH, LATIN AMERICAN SPANISH (09) - CHASSIS
8
6
4
5
7
3
1
2
9
1a

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BRAZILIAN PORTUGUESE

1шт.

1

434019A1

DECAL

Danger, Exiting

1шт.

1a

84160196

Danger, Exiting

1шт.

2

297408A1

DECAL

Danger, Crush Hazard

1шт.

3

297406A1

DECAL

Caution, Always Inspect

1шт.

4

297407A1

DECAL

Warning, Tip Hazard

1шт.

5

353240A1

DECAL

Warning, Ride Control

1шт.

6

353243A1

DECAL

Warning, Accumulator

1шт.

7

298518A1

ADHESIVE

Do Not Operate

1шт.

8

87527676

DECAL

Ether Warning

1шт.

REF

INSTRUCTION

CANADIAN FRENCH

1шт.

1

434020A1

DECAL

Danger, Exiting

1шт.

1a

84160197

Danger, Exiting

1шт.

2

297394A1

DECAL

Danger, Crush Hazard

1шт.

3

297410A1

DECAL

Caution, Always Inspect

1шт.

4

297380A1

DECAL

Warning, Tip Hazard

1шт.

5

353239A1

WARNING DECAL

Warning, Ride Control

1шт.

6

353242A1

DECAL

Warning, Accumulator

1шт.

7

321-5675

TAG

Do Not Operate

1шт.

8

682683

DANGER DECAL

Ether Warning

1шт.

REF

INSTRUCTION

LATIN AMERICAN SPANISH

1шт.

1

434018A1

DECAL

Danger, Exiting

1шт.

1a

84160193

Danger, Exiting

1шт.

2

297403A2

DECAL

Danger, Crush Hazard

1шт.

3

297413A1

DECAL

Caution, Always Inspect

1шт.

4

297388A1

DECAL

Warning, Tip Hazard; Replaces 297389A1

1шт.

5

353238A1

DECAL

Warning, Ride Control

1шт.

6

353241A1

DECAL

Warning, Accumulator

1шт.

7

298521A1

TAG

Do Not Operate

1шт.

8

86600617

DANGER DECAL

Ether Warning

1шт.

Выбрано товаров: 30
