Запчасти Case IH 420 (09-40) - SEAT BELT, LAP BELT (2 IN) (09) - CHASSIS

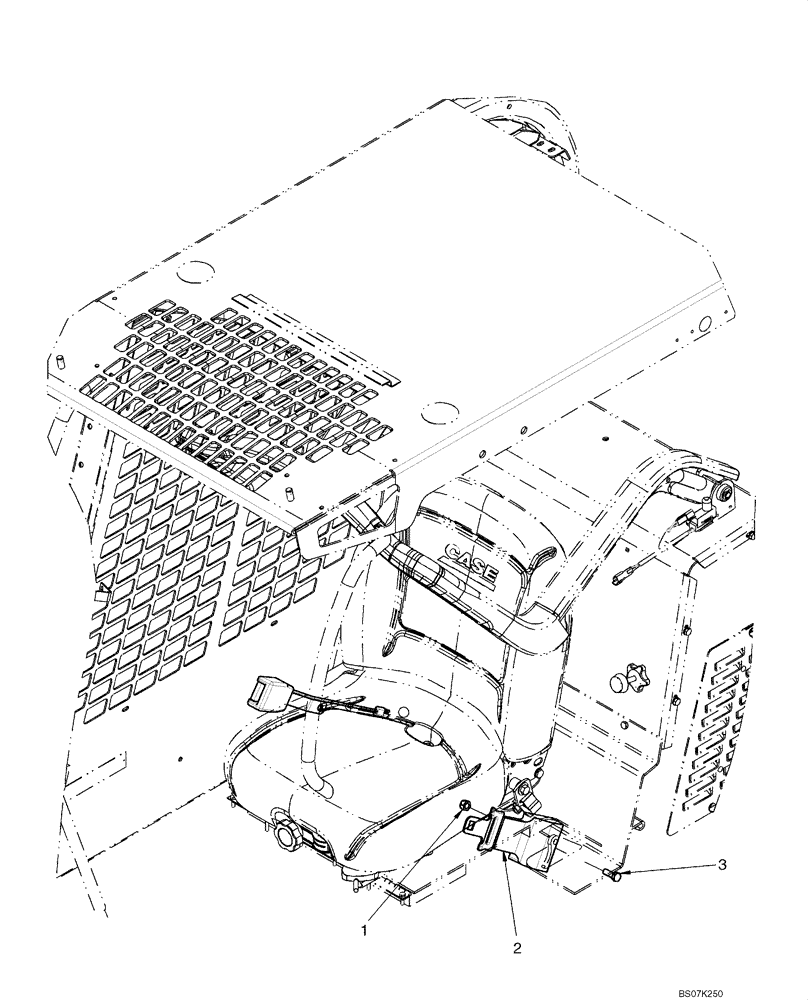

Схема запчастей Case IH 420 - (09-40) - SEAT BELT, LAP BELT (2 IN) (09) - CHASSIS
1
3
2

Артикул

Название

Примечание

Количество

1

87030549

NUT,M10 x 1.5, Cl 10

If Used; Used With Ref 3 9804262 And Washer 3A

1шт.

1

86512554

NUT,M10 x 1.5, Cl 10

If Used

1шт.

2

87652259

SAFETY BELT

2" Lap; IMMI P/N F 102500, Includes Operator Presence Switch, If Used

1шт.

2

87702505

SAFETY BELT

2" Lap; IMMI P/N F102932, No Operators Presence Switch, If Used

1шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

If Used

1шт.

3

9804262

BOLT,M10 x 39.2mm, Cl 8.8

Used With Ref 1 87030549 And Washer 3A

1шт.

3a

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1-2шт.
