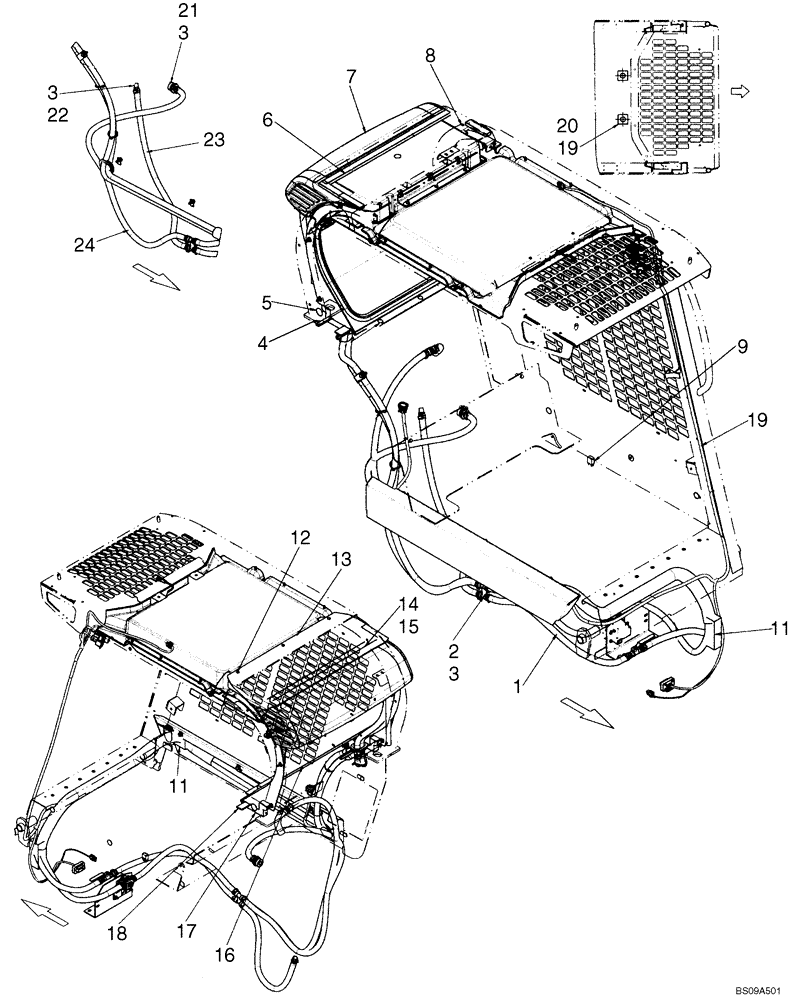

Запчасти Case IH 420 (09-35A[01]) - HEATER SYSTEM (09) - CHASSIS

87638259

SERVICE KIT

Deluxe Heater Kit; Incl 1-24 And Fig 09-35 Ref 1-44

1шт.

1

87717212

HEATER HOSE,15.75" mm ID, 760.00 mm, SAE 20R3

2шт.

2

87610315

TUBE,15.9 mm OD x 79.4, 56.4 mm L

H-Fitting

1шт.

3

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24mm

6шт.

4

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

5

87746892

DECAL

Key Blank

2шт.

6

87462144

INSULATION,25.4mm W x 1070mm L x 12.7mm Thk

Side Screen

3шт.

7

84129072

Heater HVAC Assy; Incl 87653394 And 84146888

1шт.

7

87653394

HEATER

Heater HVAC Assy; If Used

1шт.

8

87035391

SELF-TAP SCREW,Pan Hd, M4.8 x 38

2шт.

9

87655334

RELAY,12V, 35A, Micro

35A N.O.

1шт.

10

87482933

HARNESS

HVAC Harness

1шт.

11

87729516

FOAM INSULATION

Crushable Foam

2-4шт.

12

87492860

SELF-TAP SCREW,1/4" - 20 x 3/4"

Tapping, 1/4-20 X .75

3шт.

13

87492414

PLATE

Cover Plate HVAC

1шт.

14

87742340

SCREW,Pan, M6 x 25mm, Cl 4.8

M6 X 25 Pan-HD C/R-Z Full 4.8 BZN

2шт.

15

87436247

THREADED INSERT

M6

2шт.

16

87661763

RUBBER SEAL

Rubber Seal, Adhesive Bulb

1шт.

17

87496285

FOAM INSULATION

Seal

2шт.

18

291809

SEALING STRIP

Sealing Strip, 0.5 Ft Required

1шт.

19

87713668

FASTENER

Push in

2шт.

20

87743081

FASTENER

Spacer

2шт.

21

504249332

FITTING,M35 x 1.5, 18mm

use with Gasket 99469380

1шт.

22

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

23

87717213

HEATER HOSE,15.75" mm ID, 1035.00 mm, SAE 20R3

1шт.

24

87717216

HEATER HOSE,15.75" mm ID, 1565.00 mm, SAE 20R3

1шт.
