Запчасти Case IH 420 (09-35[01]) - HEATER SYSTEM (09) - CHASSIS

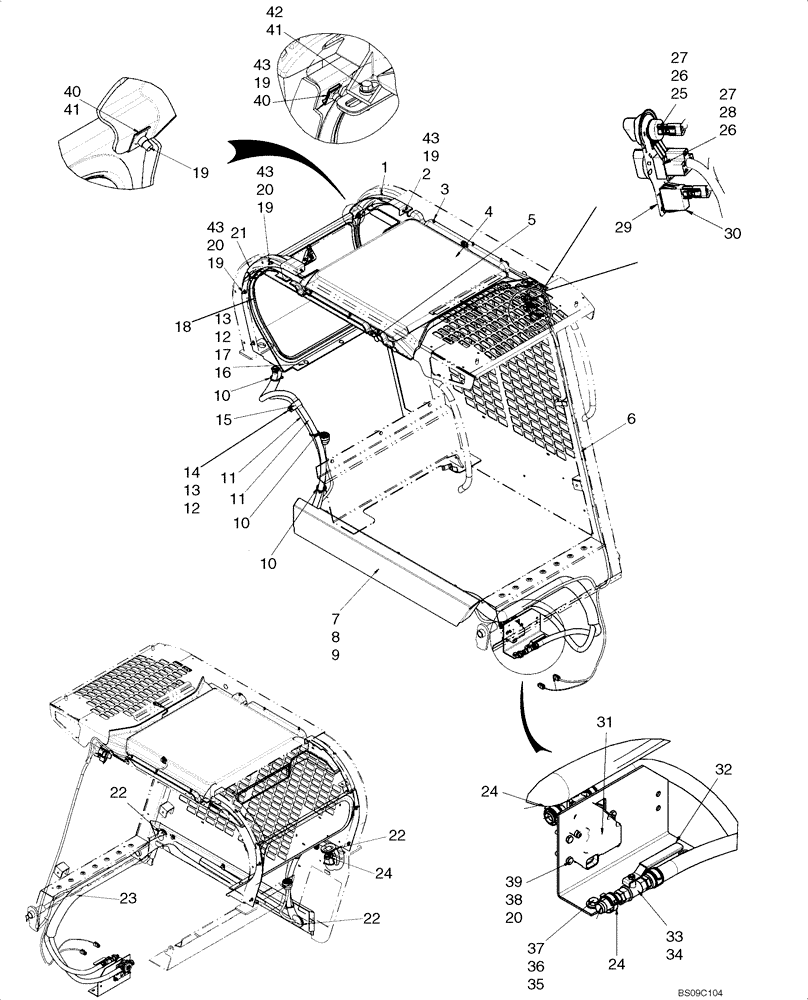

Схема запчастей Case IH 420 - (09-35[01]) - HEATER SYSTEM (09) - CHASSIS
20
4
19
38
24
24
10
16
1
25
19
14
2
19
12
20
23
28
26
26
34
15
13
42
21
43
22
36
12
35
40
19
29
8
43
27
20
33
10
19
3
5
31
22
24
30
32
40
37
43
9
7
13
22
18
11
41
39
41
17
11
43
10
6
27

Артикул

Название

Примечание

Количество

1

87705419

TRIM PANEL

Filler, Rear Window LH

1шт.

2

87712706

FASTENER,16mm L, Nylon

Fastener, Push In; If Used

2шт.

3

87713668

FASTENER

Fastener, Push In

6шт.

4

REF

INSTRUCTION

Headliner, Heat And A/C; See Fig 09-52

1шт.

5

414635A1

COVER,25.4mm OD x 0.51mm Thk

Lexan Cover, 25mm (1 in.) Dia; If Used

3-4шт.

6

87718151

HARNESS

Harness, HVAC; If Used

1шт.

6

87482933

HARNESS

Harness, HVAC

1шт.

7

87703530

COVER

Hose Cover, RH; If Used

1шт.

7

84129087

COVER

Hose Cover, RH, Gray

1шт.

7

84129088

COVER

Hose Cover, LH, Gray

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3-6шт.

9

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

3-6шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

11

87717211

HEATER HOSE,15.75" mm ID, 3400.00 mm, SAE 20R3

2шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1-4шт.

13

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1-4шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

1шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

15

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

16

43362

NUT,M8 x 1.25, Cl 10

If Used

3шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

18

REF

INSTRUCTION

Rear Window, HVAC; See Fig 09-54

1шт.

19

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

8-13шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

4-10шт.

21

87705420

TRIM PANEL

Filler, Rear Window RH

1шт.

22

87439844

GUARD

3-4шт.

23

87441006

TUBE,4.6mm ID x 1350mm L

Guard, A/C Hose

1шт.

24

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

6-8шт.

25

86729675

SWITCH,5000 Ohm

1шт.

26

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

27

86729670

KNOB

2шт.

28

86729669

SWITCH

Blower Switch

1шт.

29

87687236

DECAL

Decal, HVAC Control

1шт.

30

87555249

SWITCH

A/C Switch; If Used

1шт.

30

87555250

PLUG

A/C Switch Plug; If Used

1шт.

31

87520839

VALVE

1шт.

32

87462631

BRACKET

Water Valve And Dryer Bracket; If Used

1шт.

32

87704187

BRACKET

Water Valve And Dryer Bracket

1шт.

33

87441937

VALVE

Heater Hose Ball Valve

1шт.

34

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

2шт.

35

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

36

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

37

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

38

86511444

FLANGE NUT,Hex, M6 x 1

4шт.

39

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

40

87016585

NUT,Spring, M6 x 1

2шт.

41

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

42

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

43

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

Выбрано товаров: 49
