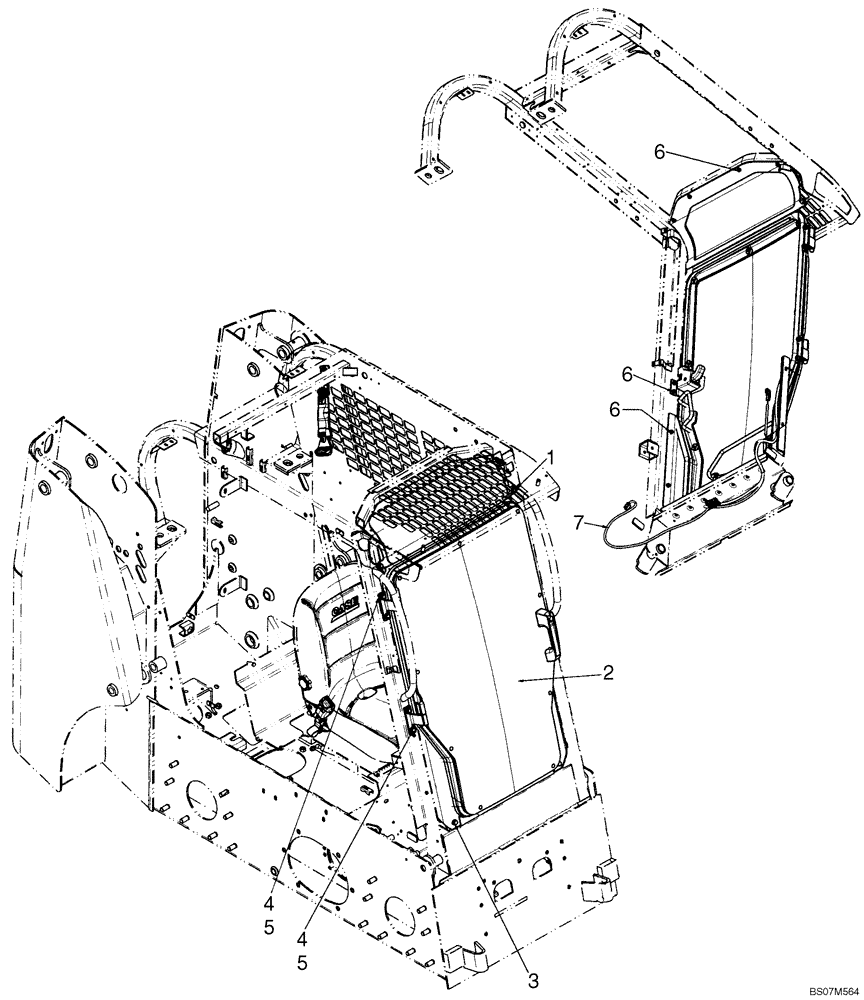

Запчасти Case IH 420 (09-32) - DEMOLITION DOOR - MOUNTING (09) - CHASSIS

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

87651126

SERVICE KIT

Kit, Demolition Door; Incl 1 - 7

1шт.

2

REF

INSTRUCTION

Demolition Door; See Fig 09-32

1шт.

3

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

2шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

If Used

4шт.

5

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

If Used

4шт.

6

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

If Used

10шт.

6

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

If Used

10шт.

7

87659212

HARNESS

Harness, Door Jumper; If Used

1шт.

7

87747927

HARNESS

Harness, Door Jumper; If Used

1шт.
