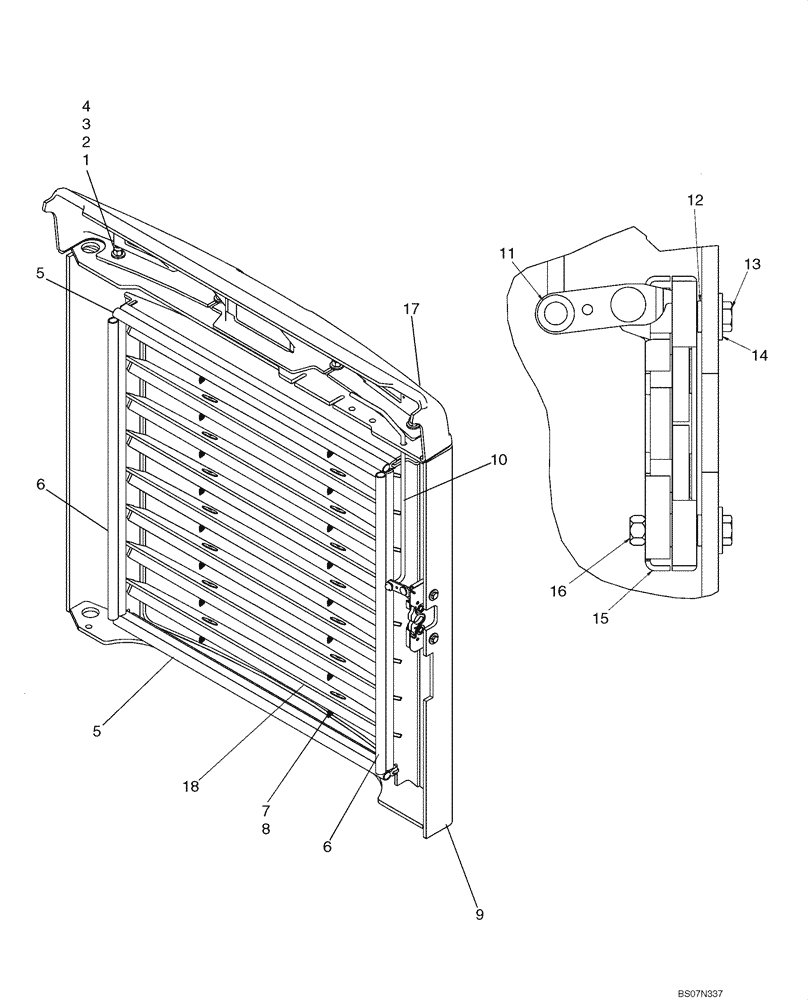

Запчасти Case IH 420 (09-23) - REAR DOOR - LOUVERED (EUROPE) (09) - CHASSIS

1

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

2

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

4шт.

3

412250

NUT,M8 x 1.25, Cl 8

4шт.

4

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

8шт.

5

87578980

RUBBER SEAL,590mm L

Bulb Seal, Top And Bottom

2шт.

6

87648128

RUBBER SEAL,562mm L

Bulb Seal, Side

2шт.

7

348452A1

FASTENER,Push-In, 37mm L, Nylon

If Used

16шт.

8

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

If Used

16шт.

9

87671495

DOOR

Euro Louvered Door; If Used

1шт.

9

84140998

DOOR

Euro Louvered Door

1шт.

10

87440124

ROD

Latch Pull Rod

1шт.

11

380751A1

NUT

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

13

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

14

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

15

87437076

LATCH

1шт.

16

87030561

NUT,M6 x 1, Cl 8

2шт.

17

87461604

LIGHT FAIRING

1шт.

18

87671496

FOAM INSULATION

Sound Pad; If Used

8шт.

18

84142932

FOAM INSULATION

Pad, Rear Door Sound

10шт.
