Запчасти Case IH 420 (09-03) - LIFT CYLINDER - COVERS (09) - CHASSIS

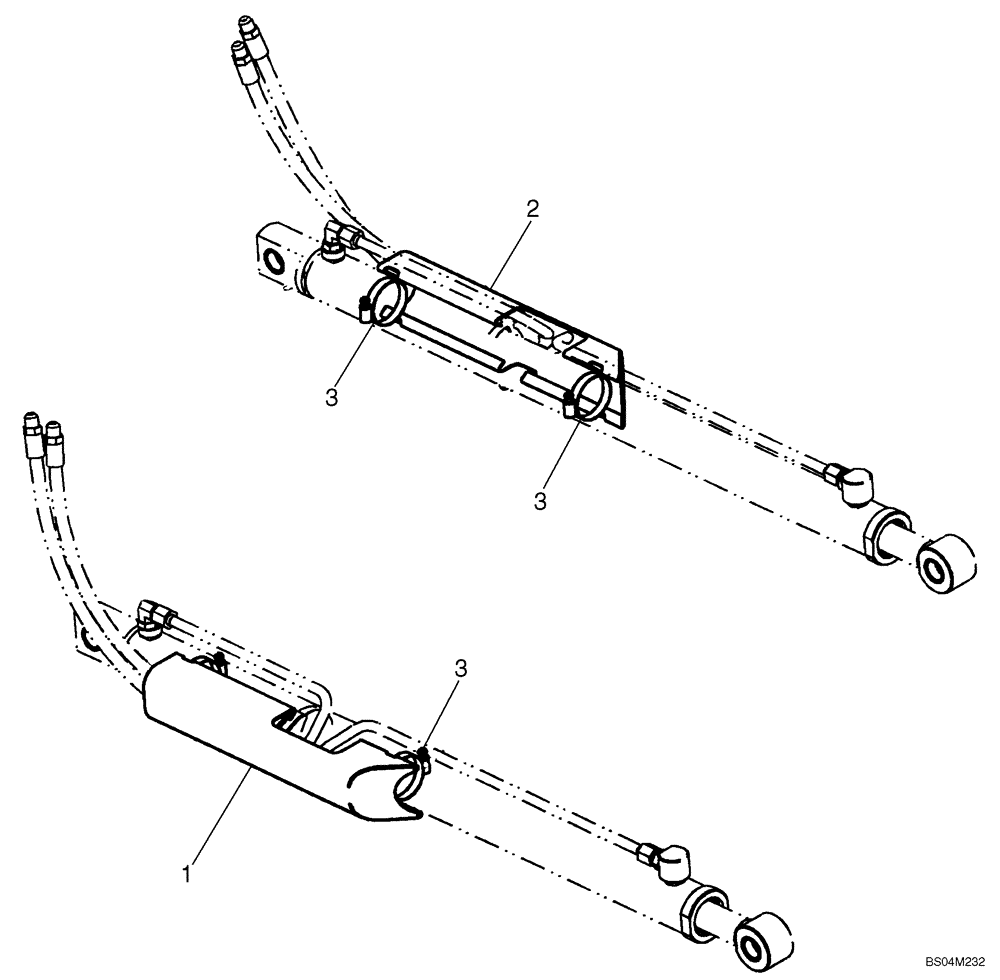

Схема запчастей Case IH 420 - (09-03) - LIFT CYLINDER - COVERS (09) - CHASSIS
2
3
3
1
3

Артикул

Название

Примечание

Количество

450051A1

DIA KIT, ADD PROD

Kit, Lift Cylinder Covers; Incl 1 - 3; No Longer Serviced. Order Components Separately

1шт.

1

429619A1

COVER

Right Hand

1шт.

2

429620A1

COVER

Left Hand

1шт.

3

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

#44 Wormgear F 3.25 x 2.31 SST; Replaces 214-1444

4шт.

3

82039349

CLAMP,60mm ID - 80mm ID x 12mm W, Unlined

Wormgear 60 x 80 x 12 CST ZND

4шт.

Выбрано товаров: 5
