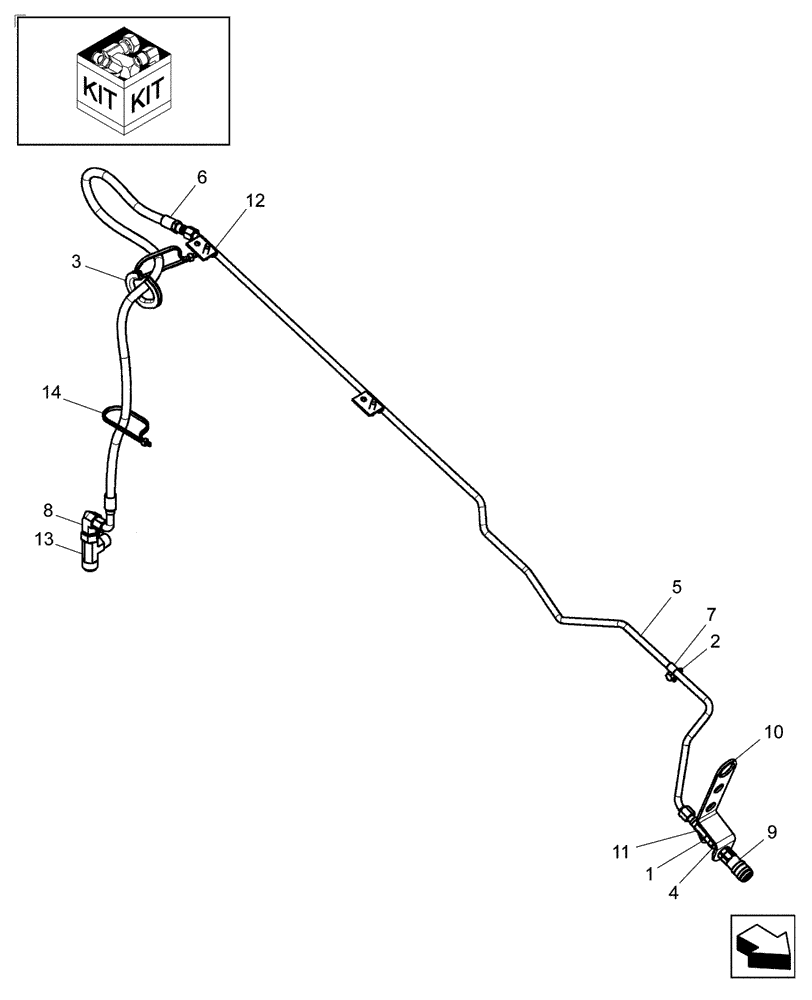

Запчасти Case IH 420 (08-39[2]) - KIT, CASE DRAIN, HIGH FLOW (08) - HYDRAULICS

1

0C

ORDER COMPONENTS

Case Drain, High Flow Kit {84177566}, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

3

291186

PROTECTION STRIP,9.9mm W

Edging

1шт.

4

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

5

84141255

TUBE

Hyd. Case Drain, Hi-Flow

1шт.

6

84145939

HOSE,9.53mm ID x 1275mm L

Loader Arm Case Drain

1шт.

7

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

8

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

9

87019286

COUPLING

Female, 8MBF

1шт.

10

87023530

BRACKET

1шт.

11

87426293

TEE

1шт.

12

87447813

BRACKET

2шт.

13

87690479

TEE

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

15

262159

CAP,3/4" - 16 Fem JIC

1шт.
