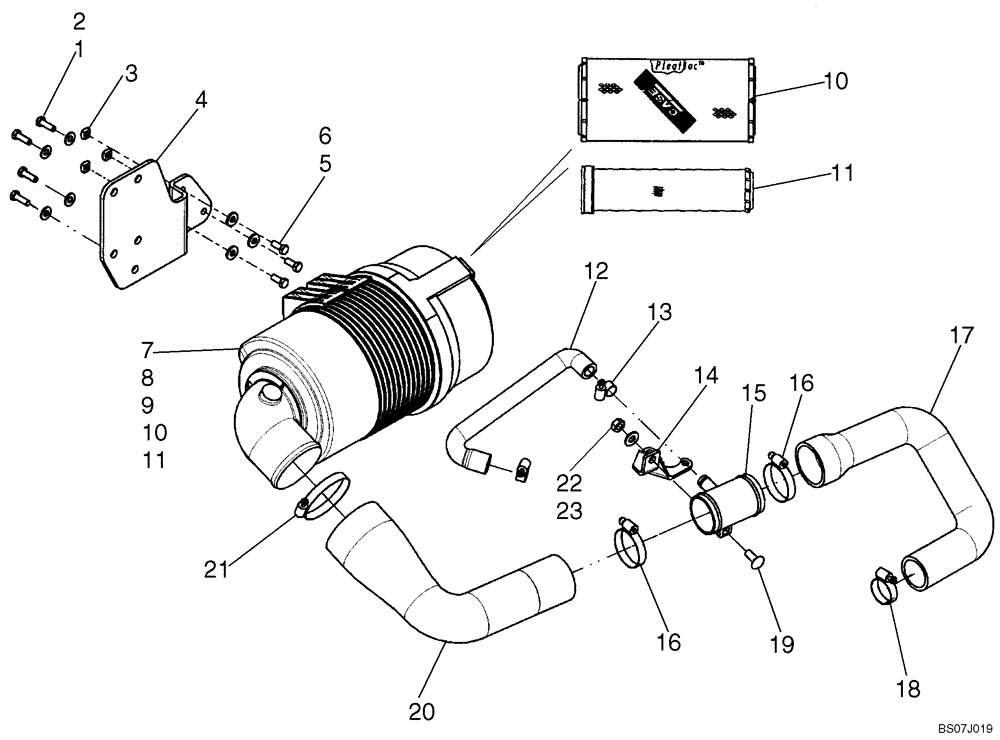

Запчасти Case IH 420 (02-04A) - ENGINE - AIR CLEANER SYSTEM; IF USED, SEE REF 12 (02) - ENGINE

1

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

3

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

4

87620930

BRACKET

Air Cleaner Mounting Bracket

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

6

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

3шт.

7

87641886

AIR CLEANER

Incl. 7 - 11

1шт.

8

395792A1

COVER ASSY

Air Cleaner Cover Assembly

1шт.

9

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Vacuator

1шт.

10

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

Primary Filter

1шт.

11

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

ELEMENT, FILTER Secondary Filter

1шт.

12

87655495

HOSE,17.00 mm ID, 20.00 mm ID, SAE 30R2

Formed

1шт.

13

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

14

87655497

BRACKET

Air Cleaner Coupler; If Used

1шт.

14

87471945

BRACKET

Air Cleaner Coupler; If Used

1шт.

15

87610560

HOSE

Air Cleaner Intake

1шт.

16

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

2шт.

17

87655492

HOSE,44.00 mm ID, 60.30 mm ID, SAE J20 R4

Coupler To Turbo

1шт.

17

87672333

HOSE,44.00 mm ID, 60.30 mm ID, SAE J200

Coupler To Turbo

1шт.

18

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

19

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

20

87655493

INTAKE AIR HOSE,60.30 mm ID, 88.90 mm ID x 240.90 mm, SAE J20R4

Air Cleaner To Coupler

1шт.

21

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

22

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

5шт.

23

100016

NUT,M10 x 1.5, Cl 8

1шт.

84194249

KIT

Cold Weather Breather Kit; See Figure 02-04B

1шт.
