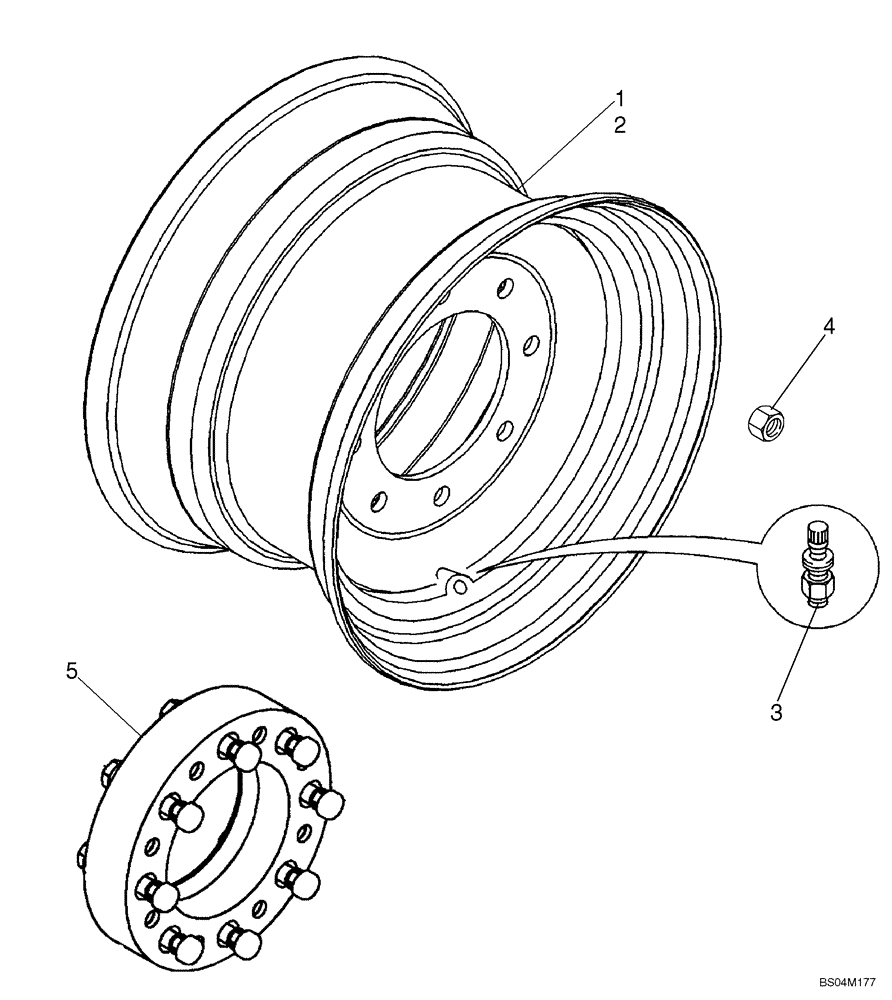

Запчасти Case IH 420 (06-34) - WHEELS (06) - POWER TRAIN

1

408450A1

RIM

WHEEL Stamped Center; 16.5 x 9.75; Used With 31.5 x 13.0 x 16.5 in. Tire

4шт.

2

87534386

RIM

Full Center; 16.5 x 8.25 Full Center; Used With 10 x 16.5 in. Tire

4шт.

1

408856A3

RIM

WHEEL Stamped Center; 16.5 x 8.25 Full Center; Used With 10 x 16.5 in. Tire

4шт.

2a

87534387

RIM

16.5 x 9.75 Full Center; Used With 12 x 16.5 in Tire

4шт.

3

294579A1

VALVE STEM

Used With Ref. 1, 2

4шт.

4

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

Lug, Hex, M16, 90 Degree Taper, Shown; Use With Wheel Ref. 1

32шт.

4

86512498

FLANGE NUT,M16 x 2, Cl 10

Not Illustrated; Use with Wheel Ref. 2

32шт.

5

451855A1

SPACER

WHEEL SPACER KIT; Includes (4) Spacers, (32) 5/8 x 2-1/8 NF Hex Flange Bolts, (32) 5/8 NF Hex Flange Nuts

1шт.

6

87534391

WHEEL ASSY

Wheel Assembly; 10 X 16.5 Galaxy 8 Ply Tire Mounted On 16.5 X 8.25 Full Center Rim, 53mm Offset

1шт.

7

87534392

WHEEL ASSY

Wheel Assembly; 10 X 16.5 Galaxy "Hulk" 10 Ply Tire Mounted On 16.5 X 8.25 Full Center Rim, 53mm Offset

1шт.

8

408451A1

Wheel Assembly; 31.5/13.00 X 16.5 Galaxy "Hippo" 10 Ply Tire Mounted On 16.50 X 9.75 Stamped Center Rim

1шт.

9

87654516

Wheel Assembly; 10 X 16.5 Galaxy "XD2002" Tire Mounted On 16.5 X 8.25 Stamped Center Rim

1шт.

10

87684518

Wheel Assembly; 12 X 16.5 Galaxy "XD2002" Tire Mounted On 16.5 X 9.75 Stamped Center Rim

1шт.
