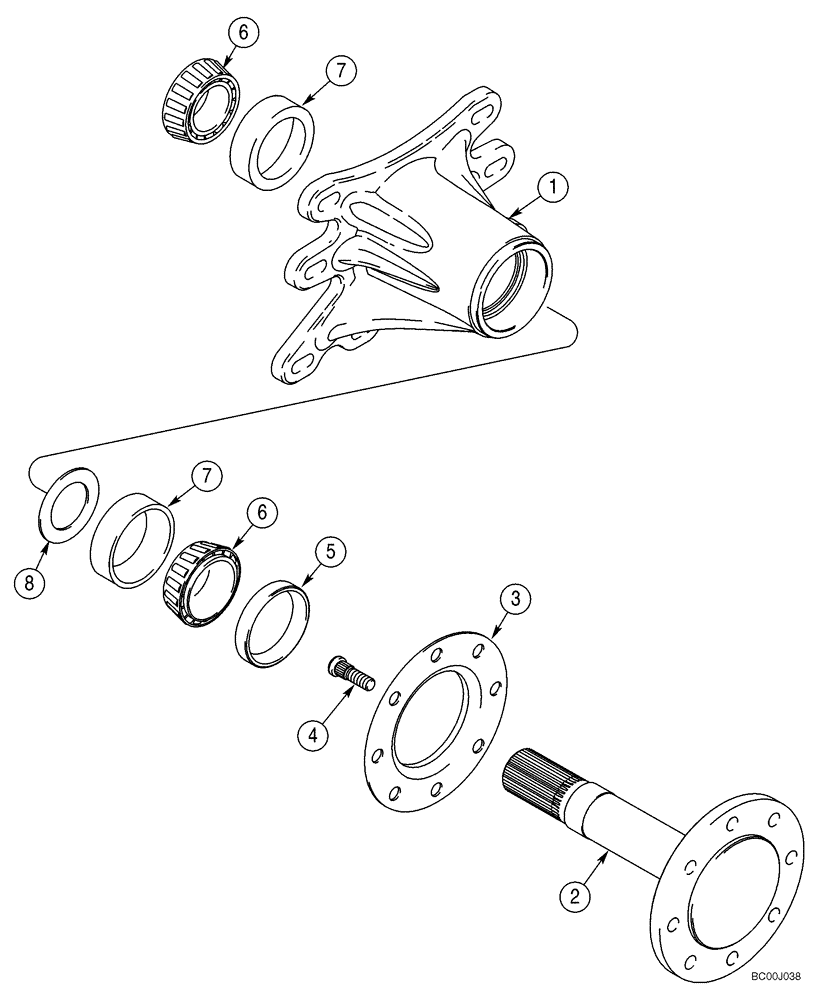

Запчасти Case IH 420 (06-33) - AXLE ASSY (06) - POWER TRAIN

1

338551A2

HUB

1шт.

338550A4

MAIN SHAFT

Incl. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Axle

1шт.

3

189995A1

FLANGE

1шт.

4

191048A2

STUD

M16; Plain; Grade 9.8; If Used

8шт.

4

87618650

STUD

M16; Phosphate Coated; Grade 9.8; If Used

8шт.

5

341837A2

SEAL,63.5mm ID x 88.9mm OD x 14mm Thk

1шт.

6

D63653

ROLLER BEARING,2.0005" ID

2шт.

7

R32216

BEARING CUP,82 mm OD x 17 mm

3-1/4 OD

2шт.

8

197805A1

WASHER,51.8mm ID x 74mm OD x 3.2mm Thk

1шт.
