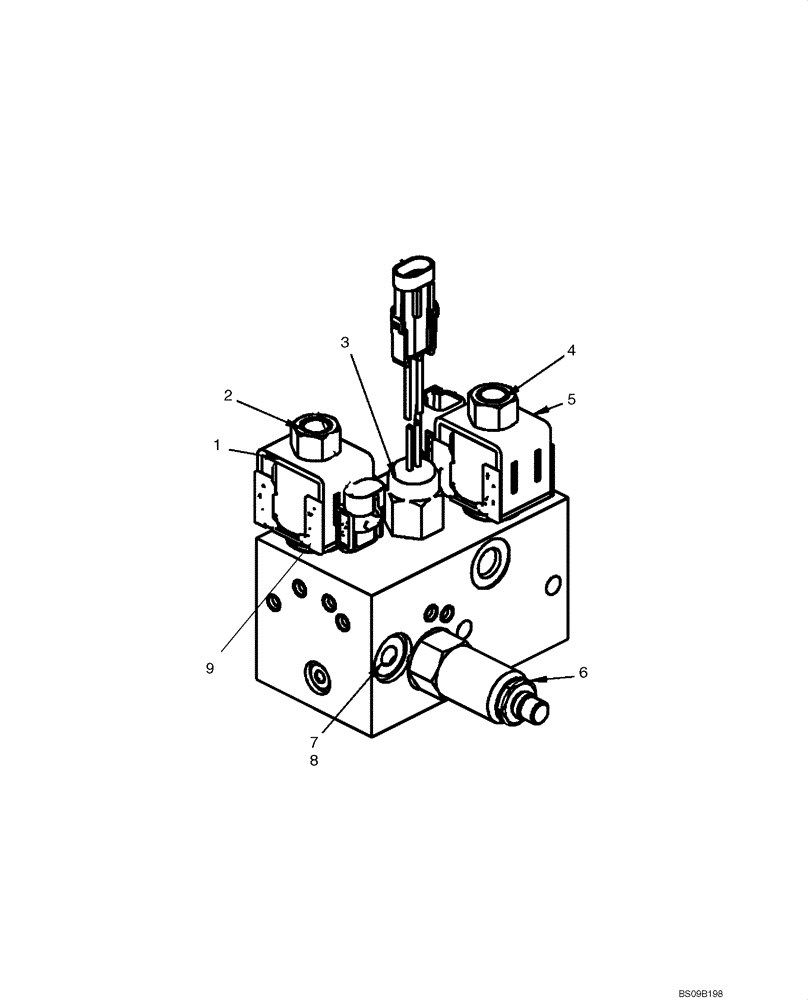

Запчасти Case IH 420 (06-28A) - HYDROSTATICS - TWO SPEED, VALVE ASSY (06) - POWER TRAIN

87429625

HYDRAULIC VALVE

Two Speed; Incl. 1 - 11; Standard Control

1шт.

87352524

BRAKE VALVE

Two Speed; Incl. 1 - 11; Pilot Control

1шт.

1

87424182

BRAKE VALVE

1шт.

2

87433496

COIL

Not Illustrated Separately

1шт.

3

87433497

VALVE

Sequence; Part of 87429625

1шт.

3

87352527

VALVE

Sequence; Part of 87352524

1шт.

4

87426545

ORIFICE

M12

1шт.

5

87433495

SOLENOID VALVE

Hydraulic Valve

1шт.

6

87433499

COIL

Not Illustrated Separately

1шт.

7

87019943

PRESSURE SWITCH

Hydraulic Valve

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Plug

1шт.

10

NSS

NOT SOLD SEPARAT

Expansion Plug

11шт.

11

NSS

NOT SOLD SEPARAT

Plug

3шт.
