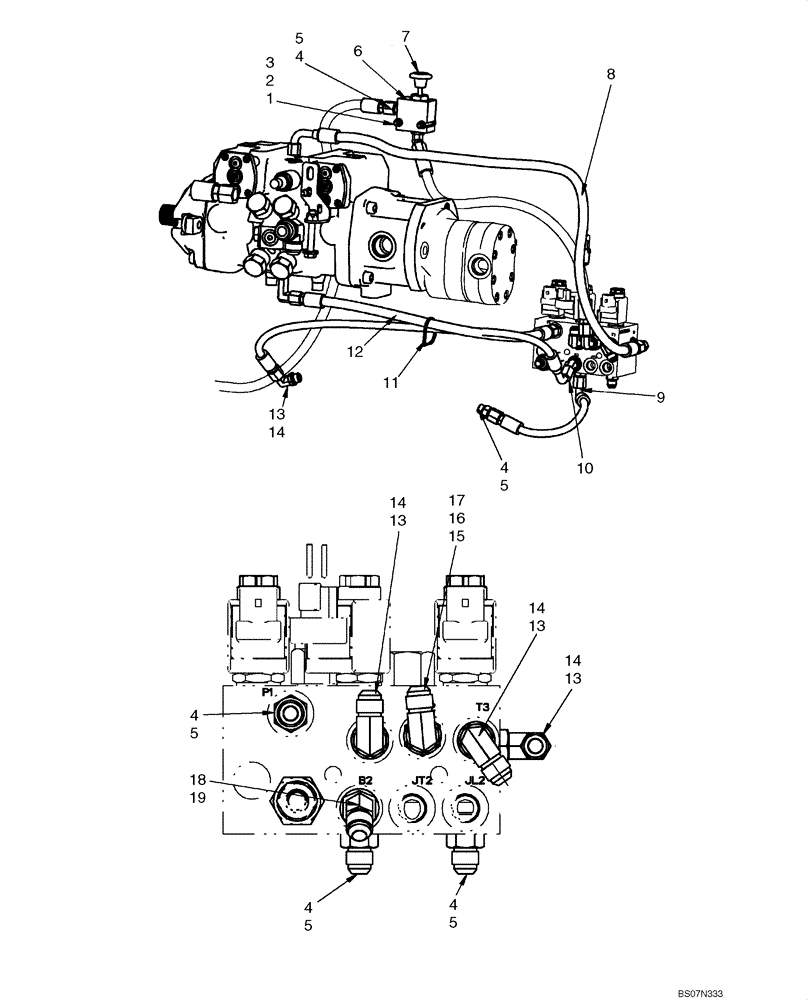

Запчасти Case IH 420 (06-26) - HYDROSTATICS - MULTI VALVE, PILOT (EUROPE) (06) - POWER TRAIN

1

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

7шт.

2

86512440

NUT,M6, Cl 10

2шт.

3

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 5

5шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

6

87604076

VALVE, EXHAUST, OVER

1шт.

7

87568435

DECAL

Decal, Boom Override

1шт.

8

87583075

HOSE

Hose, DA Pressure

1шт.

9

87563977

HOSE,6.35mm ID x 371mm L

Hose, RH Brake

1шт.

10

87563975

HOSE,6.35mm ID x 800mm L

Hose, LH Brake

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

12

87026844

HOSE ASSY.

Hose, 551mm (21 11/16 in.)

1шт.

13

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 14

5шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

15

87573371

ADAPTER

Incl 16, 17

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 19

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
