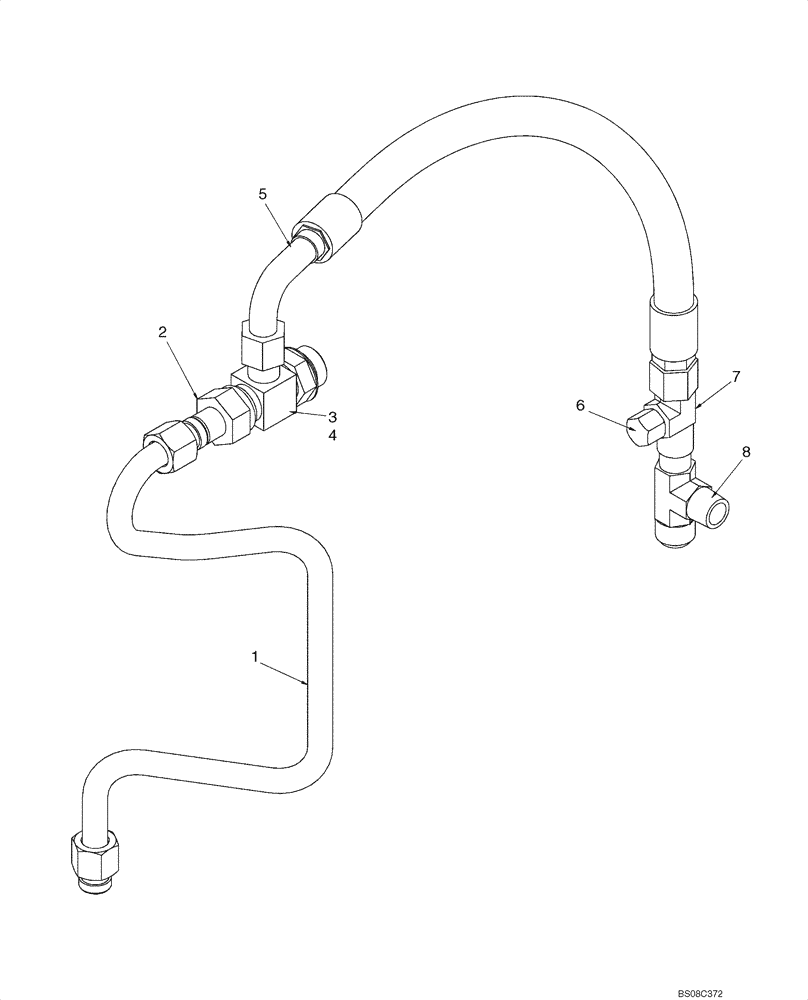

Запчасти Case IH 420 (06-25A) - HYDROSTATICS - OIL COOLER BYPASS (06) - POWER TRAIN

1

87659250

HYD TUBE,19.05 mm OD x 459.6, 175 mm L

Tube, Valve To Filter Bypass

1шт.

2

87032415

ADAPTER

Adapter, 1.0 X 3/4 37Fl

1шт.

3

254524A1

TEE

Incl 4

1шт.

4

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

87659246

HOSE,19.05mm ID x 630mm L, SAE 100R4

Hose, Oil Cooler Bypass, 630mm (24 13/16 in.)

1шт.

6

262159

CAP,3/4" - 16 Fem JIC

1шт.

7

86632548

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

1шт.

8

87690479

TEE

Tee, 1.0 X 3/4 X 3/4 37Fl

1шт.
