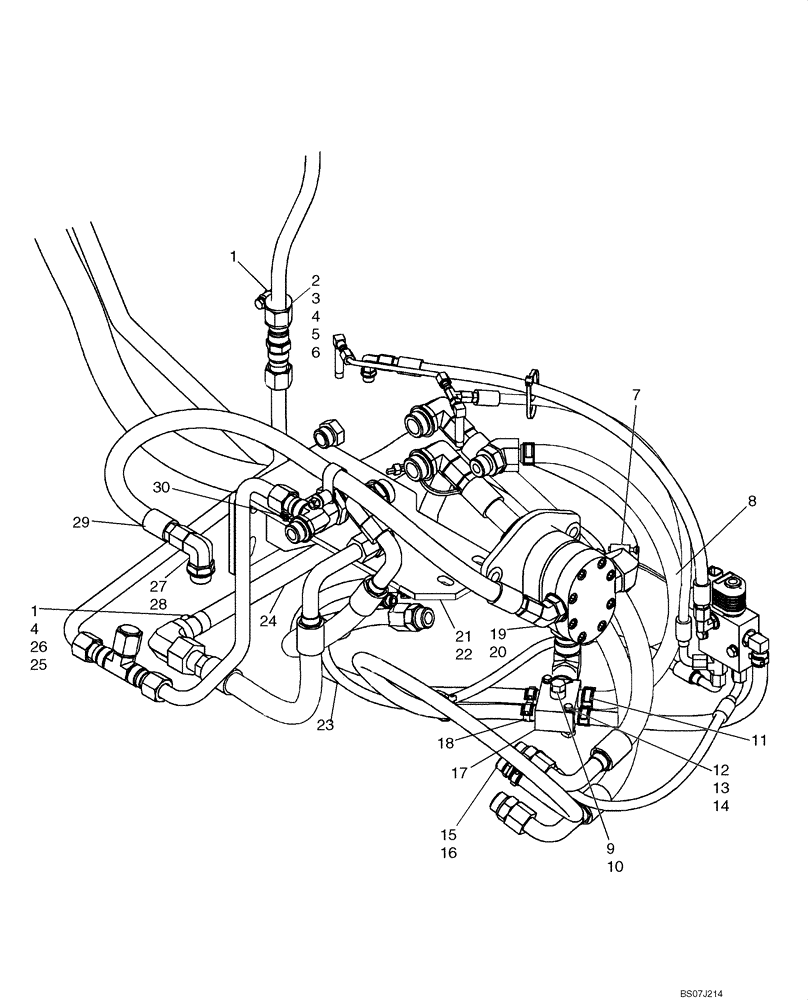

Запчасти Case IH 420 (06-16) - HYDROSTATICS - SUPPLY, RETURN AND DRAIN PLUMBING (420) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
87030567
SQUARE NUT
1-3шт.
2
87445136
HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L
1шт.
3
87042897
SPACER
1шт.
4
86624184
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2-3шт.
6
87301359
CLAMP,28.6mm, 10.3mm Bolt Hole, P Type
1шт.
7
87039085
HOSE CLAMP,32mm - 54mm
2шт.
8
87516030
HOSE,16.00 mm ID x 1360.00 mm
Pump Case Drain
1шт.
8
87016334
HOSE,15.88mm ID x 535mm L
Pump Case Drain, If Used
1шт.
9
76349
PLUG,9/16" - 18 ORB
Incl. 10
1шт.
11
87443511
CLAMP,22mm - 26mm, CTB-24, Style C
2шт.
12
86977790
BOLT,Hex, M6 x 45mm, Cl 8.8
2шт.
13
87404992
SQUARE NUT,M6 x 1.0, Cl 8
2шт.
14
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
15
87010108
FITTING,1/2" Hose Bead x 3/4" - 16 ORB
Incl 16
2шт.
17
87437351
MANIFOLD
Return Oil Manifold
1шт.
18
87443510
HOSE CLAMP,18.4mm Static ID x 15mm W
4шт.
19
100197
ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB
Incl 20
1шт.
20
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
21
87303844
HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB
Incl 22; If Used
1шт.
22
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
If Used
1шт.
23
87022175
HOSE,12.7mm ID x 600mm L
Case Drain
1шт.
24
87549661
HYD TUBE,25.4 mm OD x 258.6, 149.1 mm L
Tube, Loop
1шт.
24
87735182
HOSE,19.05mm ID x 460mm L
Tube, Loop; 460 mm (18.11 in); If Used
1шт.
25
86637977
CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type
1-2шт.
26
120103
BOLT,M8 x 1.25 x 16mm, Cl 8.8
If Used
2шт.
27
84570
90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB
Incl 28
1шт.
28
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
29
87547070
HOSE,15.88mm ID x 1000mm L
Valve Supply, 1000mm (39 3/8 in.)
1шт.
30
86536660
HOSE CLAMP,25mm - 44mm
1шт.
Выбрано товаров: 32
