Запчасти Case IH 420 (00-05) - FILTERS AND CAPACITIES (00) - PICTORIAL INDEX

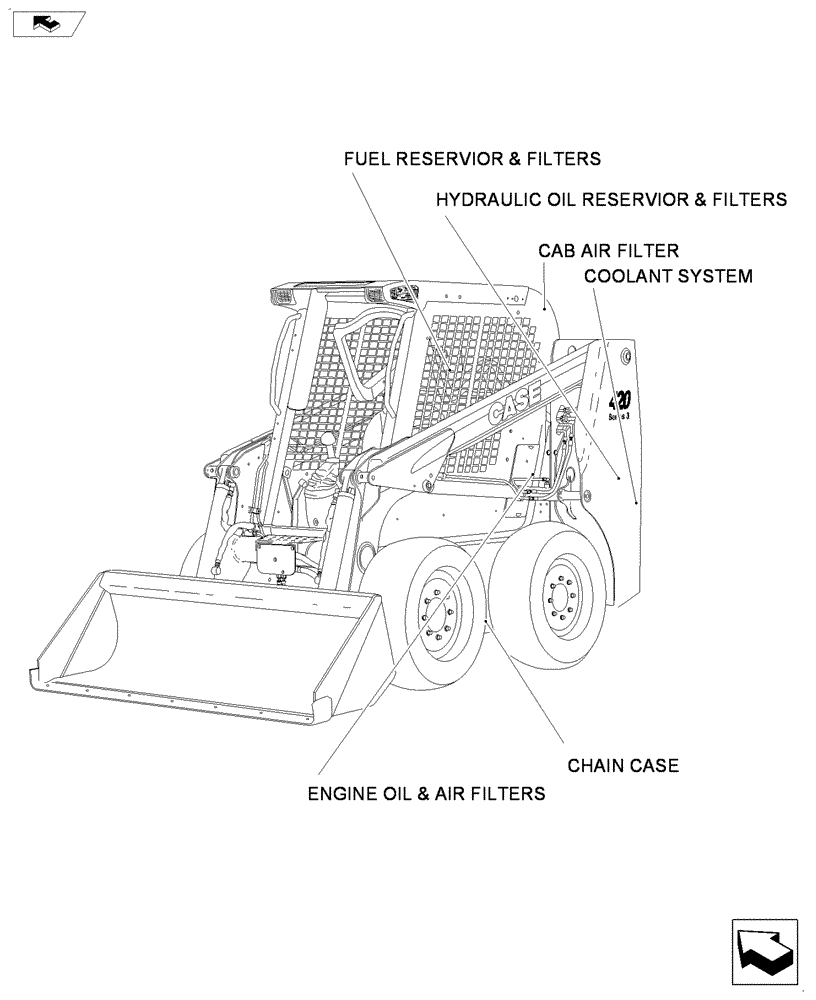

Схема запчастей Case IH 420 - (00-05) - FILTERS AND CAPACITIES (00) - PICTORIAL INDEX

Артикул

Название

Примечание

Количество

1

Cooling System Capacity, 11.4 L/ 3.0 Gal

1шт.

1

50% Water and 50% Ethylene Glycol

1шт.

1

87679598

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

ENGINE OIL

1шт.

Engine Oil Capacity With Filter Change, 8.52 Liters (2.25 Gallons)

1шт.

0W-40 Full Synthetic Engine Oil

1шт.

1

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

ENGINE AIR, Outer

1шт.

1

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

ELEMENT, FILTER ENGINE AIR, Inner

1шт.

1

SBA110666060

FILTER SCREEN

ENGINE AIR, Valve Cover & Crankshaft Pully

1шт.

1

87656118

CAB FILTER,362mm L x 160mm W x 24mm Thk, Charcoal

CAB AIR

1шт.

1

84475949

HYDRAULIC OIL FILTER

HYDRAULIC OIL FILTER

1шт.

Hydraulic Oil Capacity Reservoir, 26.89 Liters (7.1 Gallons)

1шт.

Hydraulic Oil Capacity, Entire System, 49.97 Liters (13.2 Gallons)

1шт.

Hydraulic Oil Type CASE, 10W30

1шт.

1

84477348

FUEL FILTER

FUEL

1шт.

1

87548612

FUEL FILTER

FUEL, In-Line

1шт.

Chain Case Oil Capacity (Each), 3.79 Liters (4 Quarts)

1шт.

Chain Case Oil Type, CASE No. 1 SAE 10W30

1шт.

Final Drive Oil Capacity (Each), 1.32 Liters (1.4 Quarts)

1шт.

Final Drive Oil Type, CASE 135H EP 85W-140

1шт.

Fuel Tank Capacity, 88.2 Liters (23.3 Gallons), #2 Diesel

1шт.

Выбрано товаров: 20
