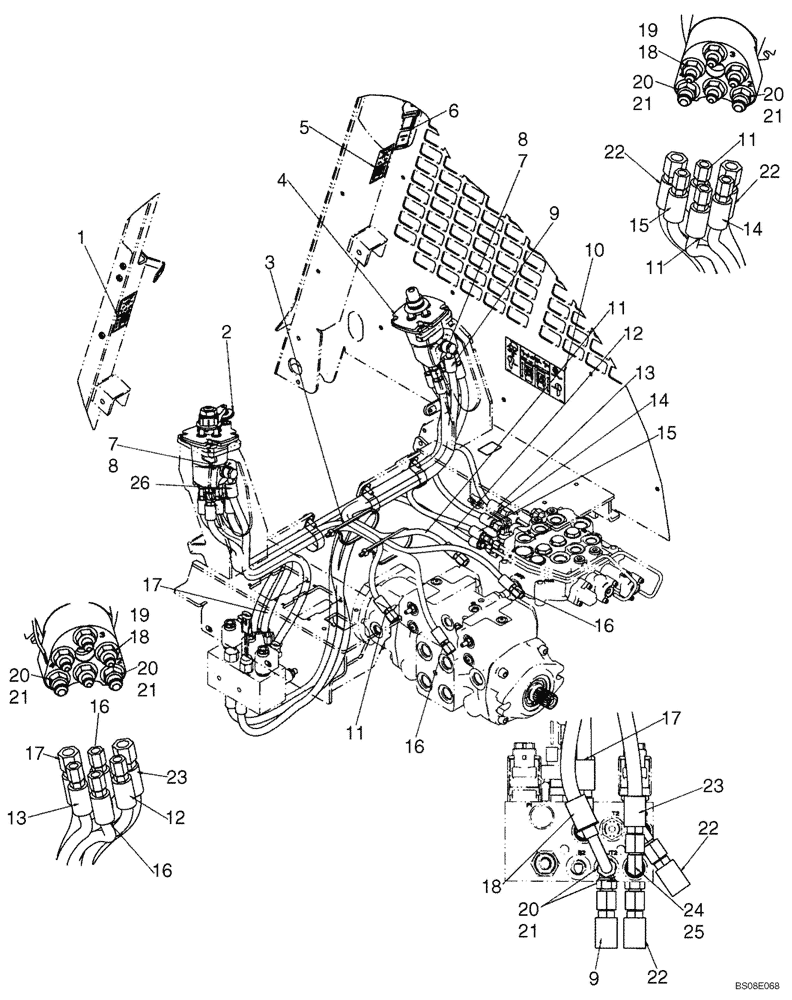

Запчасти Case IH 420 (06-01) - JOYSTICK CONTROL PLUMBING - H PATTERN (WITH PILOT CONTROL) (06) - POWER TRAIN

87638349

SERVICE KIT

H - Pattern Pilot Control; Incl 1 - 25

1шт.

1

87715689

DECAL

Decal, H - Pattern, LH

1шт.

2

87357240

HYDRAULIC VALVE

Joystick, H - Pattern, LH; See Fig 06-05; If Used

1шт.

2a

87740388

HYDRAULIC VALVE

Replaces 87357240; See Fig 06-05

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

4

87357241

HYDRAULIC VALVE

Joystick, H - Pattern, RH; See Fig 06-06; If Used

1шт.

4a

87740389

HYDRAULIC VALVE

Replaces 87357241; See Fig 06-06

1шт.

5

87715690

DECAL

Decal, H - Pattern, RH

1шт.

6

87746890

DECAL

Decal, H - Pattern

1шт.

7

933610R1

SEALING RING,M14 x 18 x 1.8

4шт.

8

87622364

BOLT

Bolt 10 Banjo 3/4 Hole Std

2шт.

9

87575289

HYDRAULIC HOSE,9.52 mm ID x 1260.00 mm

Joystick Supply

1шт.

10

87715687

DECAL

Decal, H - Pattern Control Identification

1шт.

11

87584064

HYDRAULIC HOSE,6.35 mm ID x 845.00 mm

Pilot Control

2шт.

12

87604063

HOSE,6.35mm ID x 930mm L

Hose, Pilot Control, 930mm (36 5/8 in.) Length

1шт.

13

87604061

HOSE,6.35mm ID x 1055mm L

Hose, Pilot Control, 1055mm (41 9/16 in.) Length

1шт.

14

87604069

HOSE,6.35mm ID x 490mm L

Hose, Pilot Control, 490mm (19 9/32 in.) Length

1шт.

15

87604062

HOSE,6.35mm ID x 590mm L

Hose, Pilot Control, 590mm (23 1/4 in.) Length

1шт.

16

87584065

HYDRAULIC HOSE,6.35 mm ID x 975.00 mm

Pilot Control

2шт.

17

87684180

HOSE,9.53mm ID x 620mm L

Hose, Joystick Drain, 620mm (24 13/32 in.) Length

1шт.

18

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 19

8шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

20

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

6шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

22

87684218

HOSE,9.53mm ID x 1300mm L

Hose, Joystick Supply Or Drain, 1300mm (51 3/16 in.) Length

2шт.

23

87684217

HOSE,9.53mm ID x 690mm L

Hose, Joystick Supply, 690mm (27 3/16 in.) Length

1шт.

24

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 25

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

87575290

HOSE,9.53mm ID x 776mm L

1шт.
