Запчасти Case IH 420 (07-01) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

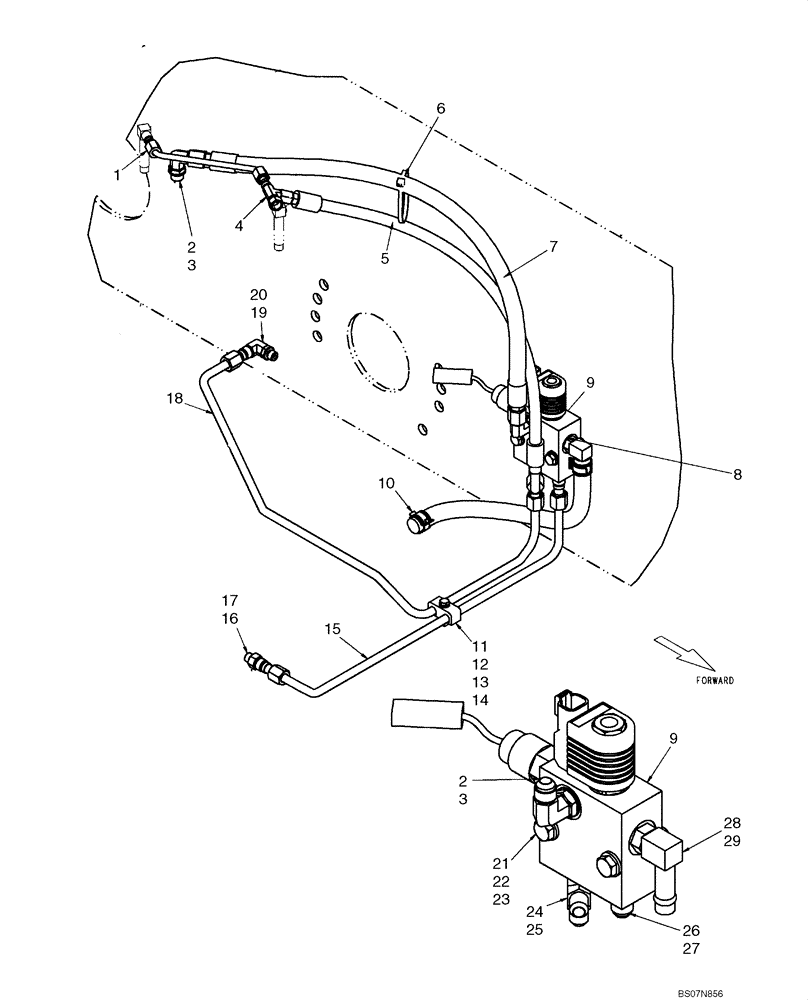

Схема запчастей Case IH 420 - (07-01) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES
9
11
4
29
23
1
18
8
28
3
25
2
15
7
14
9
22
16
5
24
13
26
3
21
10
27
12
17
20
6
19
2

Артикул

Название

Примечание

Количество

1

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 3; To Charge Port on Tandem Pump

4шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

5

87441276

HOSE ASSY.

1шт.

6

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

7

87459910

HOSE ASSY.

1шт.

8

87015463

HOSE,12.7mm ID x 402mm L

Brake Valve Drain

1шт.

9

87021047

BRAKE VALVE

Valve Assy; Incl 9A - 9C

1шт.

9a

87424182

BRAKE VALVE

Solenoid

1шт.

9b

87433496

COIL

1шт.

9c

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.

10

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

11

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6

1шт.

14

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

15

87459908

HYD TUBE,9.53 mm OD x 450.8, 100.5 mm L

1шт.

16

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 17

1шт.

17

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

18

87459909

HYD TUBE,9.53 mm OD x 452.4, 69 mm L

1шт.

19

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 20

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

22

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

23

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

24

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 25

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 27

1шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 29

1шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 32
