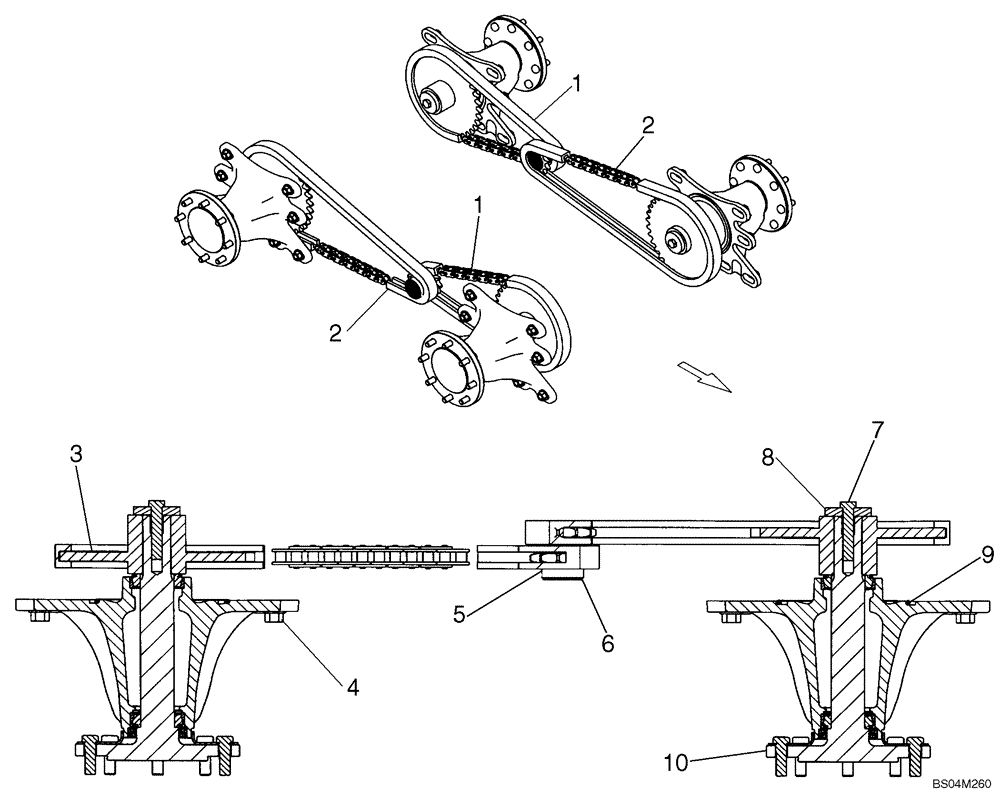

Запчасти Case IH 420 (06-18) - DRIVE LINE (06) - POWER TRAIN

1

378382A1

CHAIN (CE)

80/58P

2шт.

2

378381A1

CHAIN (CE)

80/72P

2шт.

3

86992956

SPROCKET ASSY.

35T

4шт.

4

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

5

87459745

SPROCKET

Sprocket Drive; 11 Tooth

2шт.

6

410963A1

RETAINER

2шт.

7

86577946

BOLT,Hex, M16 x 80mm x 10.9

Use Permatex ZPX24210

4шт.

8

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

9

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

10

338552A3

MAIN SHAFT,Assembly

AXLE ASSY; Used in Production; See Figure 06-19

4шт.

ZPX24210

SEALANT, THREAD

10 ml

1шт.
