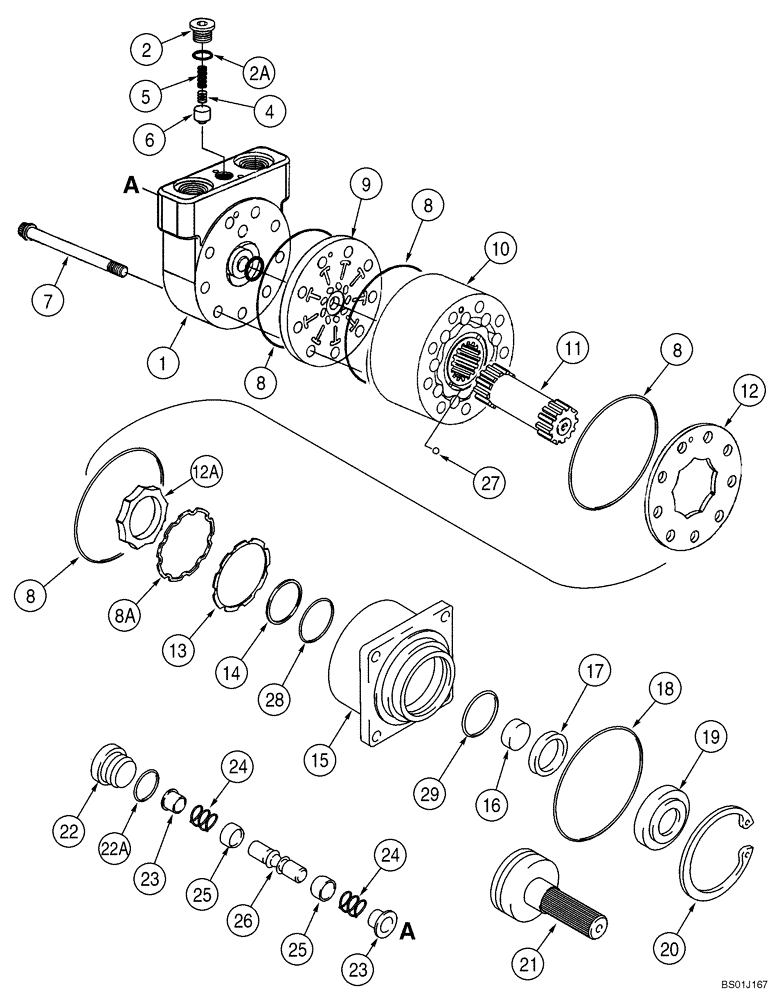

Запчасти Case IH 420 (06-17) - MOTOR ASSY - EATON (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
394539A2
MOTOR, HYDRAULIC
Eaton; Incl. Motor, 442747A2 on Figure 06-17, and Carlisle Brake, 442748A2, on Figure 06-17A
2шт.
87359410
MOTOR, HYDRAULIC
Hydraulic Motor
1шт.
87359410R
Remanufactured Hydraulic Motor
REMAN-HYD MOTOR
1шт.
87359410C
Return Number
CORE-MOTOR HYDRAULIC
1шт.
87615828
Eaton; Incl. Motor on Figure 06-17, Seal Kit 87359401 and Eaton Brake, 87598678 on Figure 06-17B
2шт.
442747A2
MOTOR, HYDRAULIC
Incl. 1 - 29
1шт.
87457450
MOTOR, HYDRAULIC
HYDRAULIC MOTOR
1шт.
87457450R
REMAN-HYD MOTOR
1шт.
87457450C
Return Number
CORE-MOTOR HYDRAULIC
1шт.
1
87413036
CAP
1шт.
2
282787A1
PLUG
Incl. 2A
1шт.
2a
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
3
NSS
NOT SOLD SEPARAT
O-Ring
2шт.
4
282788A1
SHIM
1шт.
5
282789A1
SPRING
1шт.
6
438416A1
VALVE POPPET
1шт.
7
438431A1
12 PT SCREW
9шт.
8
NSS
NOT SOLD SEPARAT
Seal
4шт.
8a
NSS
NOT SOLD SEPARAT
Seal
1шт.
9
438425A1
PLATE
Valve
1шт.
10
438426A1
GEAR-SET
1шт.
11
442750A1
DRIVE
1шт.
12
438427A1
PLATE
Thrust; Outer
1шт.
12a
438428A1
PLATE
Thrust; Inner
1шт.
13
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
14
442751A1
BACK-UP RING
1шт.
15
NSS
NOT SOLD SEPARAT
Housing, Bearing
1шт.
16
NSS
NOT SOLD SEPARAT
Spacer
1шт.
17
NSS
NOT SOLD SEPARAT
Seal, Shaft
1шт.
18
238-5433
O-RING,0.275" Thk x 5.475" ID, -433, Cl 5, 75 Duro
O-Ring
1шт.
Not Included in Seal Kits
1шт.
19
NSS
NOT SOLD SEPARAT
Retainer
1шт.
20
NSS
NOT SOLD SEPARAT
Ring, Retaining
1шт.
21
NSS
NOT SOLD SEPARAT
Shaft
1шт.
22
282804A1
PLUG
Incl. 22A
1шт.
22a
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
23
438417A1
SLEEVE
2шт.
24
251506A1
SPRING
2шт.
25
251511A1
VALVE POPPET
2шт.
26
365475A1
PISTON ASSY.
1шт.
27
140784A1
BALL
2шт.
28
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
29
NSS
NOT SOLD SEPARAT
Seal
1шт.
87413039
SPRING
Bellville Washer; Not Illustrated Separately
1шт.
442748A2
BRAKE ASSY.
Carlisle; Before Date Code 276-06, 03OCT06; See Figure 06-17
1шт.
87598678
BRAKE
Eaton; On and After Date Code 276-06, 03OCT06; See Figure 06-17B
1шт.
87413001
KIT
Incl. 2A, 3, 8, 13, 22A, 28, 29
1шт.
87359401
SEAL KIT
Seal Kit For 87615828
1шт.
Выбрано товаров: 48
