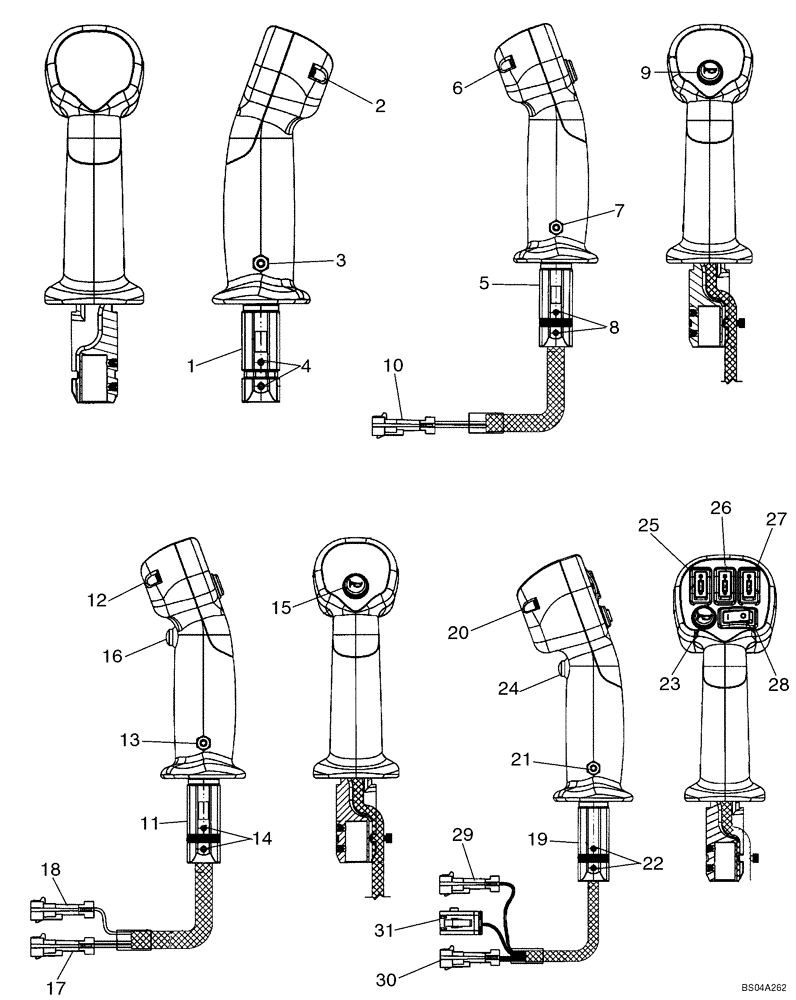

Запчасти Case IH 420 (04-12) - CONTROLS, RIGHT HAND - HANDLE; IF USED, SEE ADAPTER, REF 5 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
87458322
HANDLE
WITHOUT SWITCHES; Incl. 1 - 4
1шт.
1
87456565
ADAPTER
Mount
1шт.
2
86837247
SCREW,#4-40 x 1 1/2", w/LW
Faceplate
2шт.
3
87427350
SCREW,Hex, #10 - 32 x 5/16"
Grip
2шт.
4
87564724
SET SCREW,Hex Skt, #10 - 32 x 1/4"
SET SCREW, #10-32 x 1/4 CONE AST PHC
2шт.
87458323
HANDLE
WITH HORN; Incl. 5 - 10
1шт.
5
87456565
ADAPTER
Mount
1шт.
6
86837247
SCREW,#4-40 x 1 1/2", w/LW
Faceplate
2шт.
7
87427350
SCREW,Hex, #10 - 32 x 5/16"
Grip
2шт.
8
87564724
SET SCREW,Hex Skt, #10 - 32 x 1/4"
SET SCREW, #10-32 x 1/4 CONE AST PHC
2шт.
9
87427729
SWITCH
Horn
1шт.
10
253294A1
CONNECTOR, ELEC
CONNECTOR
1шт.
87458324
HANDLE
WITH HORN, RIDE CONTROL; Incl. 11 - 18
1шт.
11
87456565
ADAPTER
Mount
1шт.
12
86837247
SCREW,#4-40 x 1 1/2", w/LW
Faceplate
2шт.
13
87427350
SCREW,Hex, #10 - 32 x 5/16"
Grip
2шт.
14
87564724
SET SCREW,Hex Skt, #10 - 32 x 1/4"
SET SCREW, #10-32 x 1/4 CONE AST PHC
2шт.
15
87427729
SWITCH
Horn
1шт.
16
87427352
SWITCH
Trigger; On/Off; Ride Control
1шт.
17
256341A1
ELEC CONNECTOR,Male, 2 Pin
1шт.
18
253294A1
CONNECTOR, ELEC
CONNECTOR
1шт.
87458325
HANDLE
WITH HORN, RIDE CONTROL, FRONT ELECTRIC; Incl. 19 - 31
1шт.
19
87456565
ADAPTER
Mount
1шт.
20
86837247
SCREW,#4-40 x 1 1/2", w/LW
Faceplate
2шт.
21
87427350
SCREW,Hex, #10 - 32 x 5/16"
Grip
2шт.
22
87564724
SET SCREW,Hex Skt, #10 - 32 x 1/4"
SET SCREW, #10-32 x 1/4 CONE AST PHC
2шт.
23
87427729
SWITCH
Horn
1шт.
24
87427352
SWITCH
Trigger; On/Off; Ride Control
1шт.
25
87427685
SWITCH
Rocker; Momentary; Front Electric Switch 1
1шт.
26
87427686
SWITCH
Rocker; Momentary; Front Electric Switch 2
1шт.
27
87427687
SWITCH
Rocker; Momentary; Front Electric Switch 3
1шт.
28
87427688
SWITCH
Rocker; 0n/Off; Front Electric Switch 4
1шт.
29
253294A1
CONNECTOR, ELEC
CONNECTOR
1шт.
30
256341A1
ELEC CONNECTOR,Male, 2 Pin
1шт.
31
225319C1
MULTIPOLE CONNECTOR,Female, 8 Pin
1шт.
Выбрано товаров: 35
