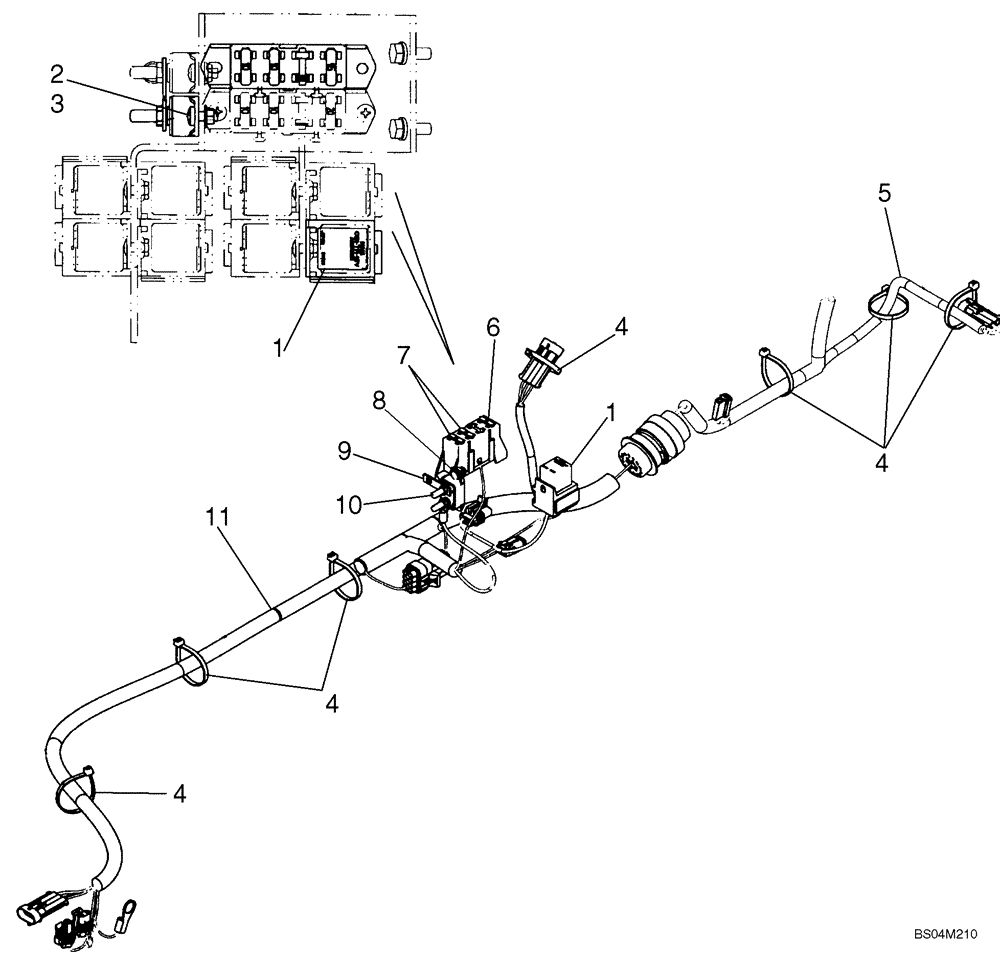

Запчасти Case IH 420 (04-09) - OPTIONS, ELECTRICAL (04) - ELECTRICAL SYSTEMS

1

87436836

RELAY,12V, 40 Amp

40 amp, 12 V, Heavy Duty; If Used

1шт.

1

87355337

RELAY,12V, 45A

45 Amp; MFG # Stamped On Case - 4RD 931 680-01; If Used

1шт.

2

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

1шт.

3

231-52409

FLANGE NUT,Flg, USR, #10-32

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

9шт.

5

87034043

HARNESS

Cab Options

1шт.

6

A149801

FUSE,Lt Blue, 15 Amp

15 A, Light Blue

1шт.

7

A149800

FUSE,10 Amp

10 A, Red

2шт.

8

87049165

CIRCUIT BREAKER

40 A

1шт.

9

245860C1

BAR

If Used

1шт.

10

247333A1

CAP

2шт.

11

87459276

HARNESS

Chassis Options

1шт.
