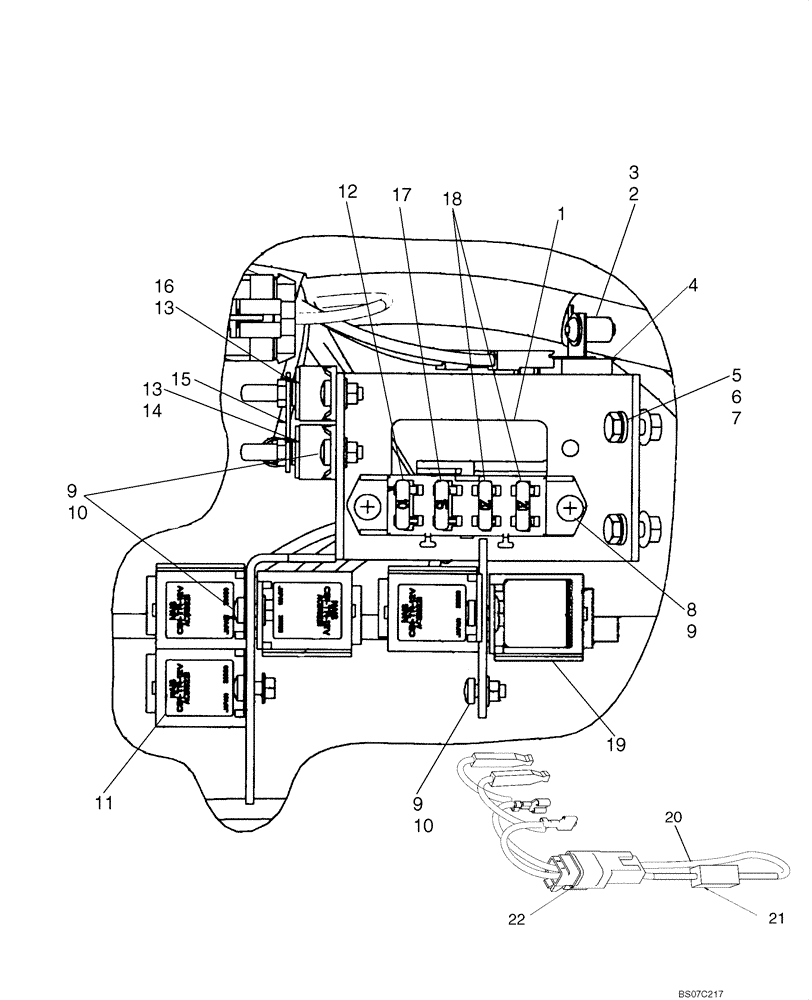

Запчасти Case IH 420 (04-08) - FUSES AND RELAYS (04) - ELECTRICAL SYSTEMS

1

87447300

BRACKET

1шт.

2

D122634

ISOLATOR,12.7mm OD x 14.1mm L

Isolator

1шт.

3

87016450

SCREW,Pan, #10 - 32 x 5/8"

1шт.

4

86705351

RESISTOR

50 ohm

1шт.

5

86624181

WASHER,M6

2шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

8

280944

SCREW,Phillips Drive, Pan HD, #10 - 32 x 3/4"

2шт.

9

87316503

NUT

#10 -32

8шт.

10

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

6шт.

11

87436836

RELAY,12V, 40 Amp

40 amp, 12 V, Heavy Duty; If Used

4шт.

11

87355337

RELAY,12V, 45A

45 Amp; MFG # Stamped On Case - 4RD 931 680-01; If Used

4шт.

12

A149800

FUSE,10 Amp

10 A, Red

1шт.

13

247333A1

CAP

4шт.

14

87049165

CIRCUIT BREAKER

40 A

1шт.

15

245861C1

BAR

1шт.

16

87049166

CIRCUIT BREAKER

15 A

1шт.

17

A149801

FUSE,Lt Blue, 15 Amp

15 A, Light Blue

1шт.

18

A149802

FUSE

20 A, Yellow

2шт.

19

314451A1

RELAY

40 A, Heavy Duty; If Used

1шт.

19

87355337

RELAY,12V, 45A

45 Amp; MFG # Stamped On Case - 4RD 931 680-01; If Used

1шт.

87604790

SERVICE KIT

Incl. 87603548 And Instructions

1шт.

20

87603548

HARNESS

Kit, Interlock Resistor Jumper; Incl. 21, 22

1шт.

21

87603120

RESISTOR

Resistor, 100 Ohm 5W

1шт.

22

87603121

HARNESS

Interlock Adapter

1шт.

87611148

SERVICE KIT

Light Power Cable; See Service Bulletin 2006/12-NSL; Incl. 87602205 And Instructions

1шт.

87602205

CABLE

Light Power Cable

1шт.
